MIL-DTL-26482 Series I and II Type Hermetic Seal Connectors

Fast and Reliable Mating

Glenair MIL-DTL-26482 Series I and II Bayonet-Lock Connectors are ideally suited for vacuum chambers, pressurized bulkheads, and other military and commercial applications that utilize this general-purpose medium-density cylindrical connector and require helium leak test rates of less than 1x10-7 cc/second. The bayonet-lock mating mechanism provides fast and easy coupling, especially when the connector is situated in an awkward or hard to reach location. A wide range of available mounting styles — including both narrow and wide flange mounts — provide complete flexibility in interconnect system design. PCB and solder cup contacts allow easy integration and termination to I/O cabling and electronic sub-systems. Glenair MIL-DTL-26482 Type hermetics are interchangeable and intermateable with the wide range of industry-standard bayonet connectors designed around MIL-DTL-26482 and/or qualified to VG 95328, including ITT Cannon KPT.

MIL-DTL-26482 Type Hermetic Technical Information

MIL-DTL-26482 Series I and II Type Hermetic Application Notes

MIL-DTL-26482 Series I Type Hermetic

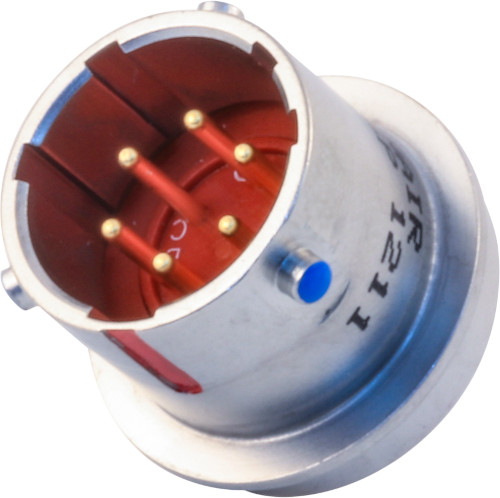

	230-014 Bayonet-Lock Solder-Mount Receptacle MIL-DTL-26482 Series I Type Hermetic MS3113 Type

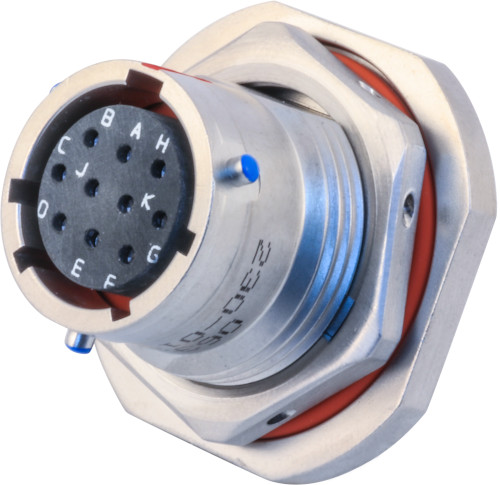

	230-015 Bayonet-Lock Jam Nut Receptacle MIL-DTL-26482 Series I Type Hermetic MS3114 Type

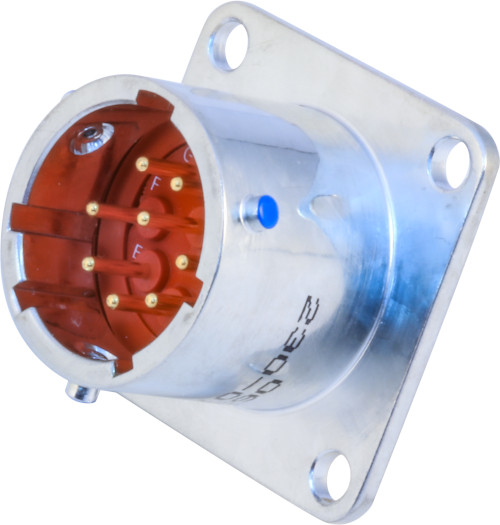

	230-035 Bayonet-Lock Narrow Flange Mount Receptacle MIL-DTL-26482 Series I Type Hermetic MS3112 Type

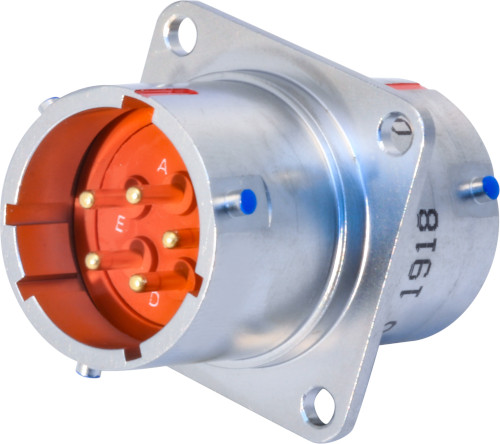

	947-303 Bayonet-Lock Narrow Flange Mount Bulkhead Feed-Thru MIL-DTL-26482 Type Hermetic MS3440 Type

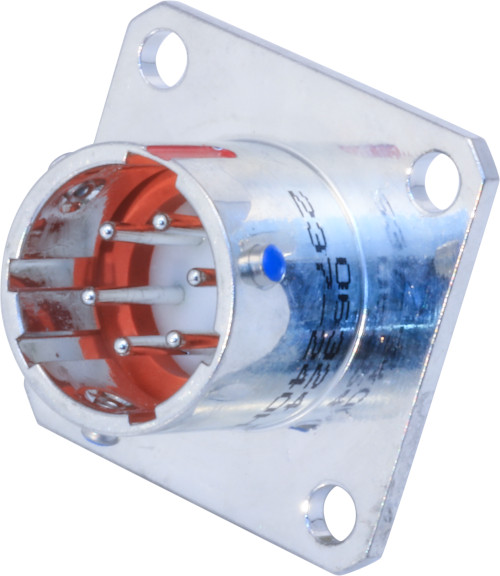

	237-240 Special Square Flange Mount Bayonet-Lock Receptacle MIL-DTL-26482 Series I Type Hermetic

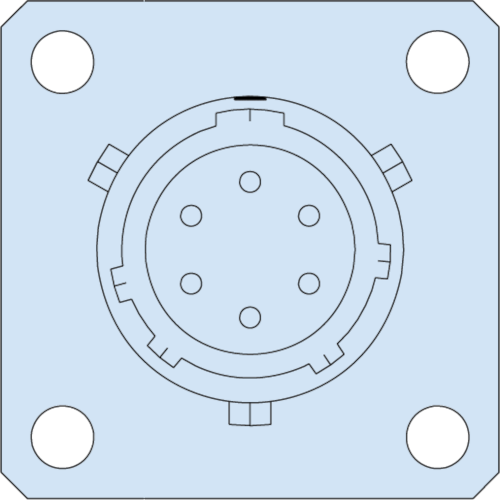

	230-046 Square Flange Mount Bayonet-Lock Receptacle MIL-DTL-26482 Series I Type Hermetic MS3112 Type Hermetic
