IPT Series: MIL-DTL-26482 Type and VG95328 Qualified

Bayonet-Lock Connectors

• High-Density MIL-DTL-26482 Series I Connectors
• VG95328 Qualified
• For Rugged Military and Industrial Applications

Glenair IPT and IPT SE series connectors offer rugged, high vibration performance and rapid mating for both high-performance and general duty signal connector applications. The products are environmentally sealed and can be equipped with EMI/RFI shield termination backshell accessories. IPT SE is qualified to VG 95328. Both product series are in accordance with MIL-DTL-26482 Series I.

Reference

• Catalog Table of Contents
• IPT-SE and IPT Product Features and Specifications

Product Index

• Complete Listing of Catalog Pages and Part Number Index

On this page...

• IPT-SE Series
• IPT Series
• Connector Accessories and Tools

IPT SE Brings High-Performance Crimp Contact Termination to MIL-DTL-26482 Series I Bayonet Connectors

Harsh Application Environments

The Glenair Series IPT SE Bayonet-Lock Signal Connector is ideally suited for all general and environmental applications that require a high-performance military type cylindrical connector with crimp-removable contacts. Qualified to VG95328, the bayonet mechanism provides fast and easy coupling, especially when the connector is situated in an awkward or hard to reach location.

Environmental protection up to IP67 levels provides additional reliability and the flexibility to specify these rugged connectors in harsh applications such as in machine tools and factory automation. Supplied crimp contacts are gold-plated copper alloy. Inserts are made from high-insulation synthetic rubber, oil and temperature resistant from -55° C to +125° C (polychloroprene) to +200° C (silicone).

Intermateability

The Series IPT SE Connector is interchange-able and intermateable with the wide range of industry-standard bayonet connectors designed around MIL-DTL-26482 Series I and/or qualified to VG 95328, including ITT Cannon KPT.

Main Technical Characteristics

• High Performance Crimp Version with Contact Retention Clips and Sealed Inserts—2 Contact Sizes: #20 and #16.
• 21 Signal Contact Insert Arrangements, 3 to 61 Contacts
• Rear-Insertion/Front Release Snap-In Contacts
• Intermateable with Other MIL-DTL-26482 Series I Products
• Ruggedized Contact Retention Clip
• Environmentally Sealed System
• Audible and Visual Coupling Indicators
• Keyed Polarization

Reference

• Selection Guide: IPT SE Series
• Overview: IPT SE Series
• Styles and Classes
• Technical Data
• How to Order • Part Number Breakdown
• VG95328 Part Number Cross Reference
• Materials and Finishes
• Pin and Socket
• Insert Arrangement Tables and Sealing Plugs
• Fastener Height Requirements and Panel Cutout Dimensions

An Economical Connector Solution for General Electronics, Industrial Controls, Instrumentation and Military Vehicles

Harsh Application Environments

The Glenair Series IPT Bayonet-Lock Signal Connector is ideally suited for all interconnect applications that require a general-duty connector equipped with solder cup contacts and one-piece rubber insert. The bayonet coupling mechanism provides fast and easy mating, especially when the connector is situated in an awkward or hard to reach location. The connector's high resistance to vibration and shock provides foolproof performance in even the most rigorous application environments. Environmental protection up to IP67 levels provides additional reliability and the flexibility to specify these rugged connectors in harsh applications such as machine tools and factory automation. Supplied solder cup contacts are gold-plated over nickel. Optional crimp contacts are available, however the Glenair IPT SE series, with its industry standard rear-release crimp contacts and retention clip mechanism is better suited for all high-performance applications that require crimp contacts. Sealing members in the IPT series are made from resilient neoprene rubber. The standard insert material is synthetic rubber. There are 40 different size 12, size 16 and size 20 insert arrangements and nine shell sizes.

Intermateability

The Series IPT Connector is interchangeable and intermateable with the wide range of industry-standard bayonet connectors designed around MIL-DTL-26482 Series I and/or qualified to VG 95328, including VEAM VPT, Amphenol PT, Amphenol Limited 62GB, and ITT Cannon KPT.

• Solder Cup Version with Optional Crimp Contacts
• Resilient Environmental Inserts
• Fast, Easy Bayonet Coupling
• 40 Power and Signal Insert Arrangements
• All Shell Styles: Plug, Square Flange, Jam-Nut, etc.
• High Shock and Vibration Resistance
• Pin Counts from 2 to 61; Size #12, #16 and #20 Contacts
• Audible and Visual Coupling Indicators
• Keyed Polarization

Reference

• Selection Guide: IPT Series
• Product Line Overview: IPT Series
• Styles and Classes
• How to Order • Part Number Breakdown
• Cross Section
• Technical Data
• Materials and Finishes
• Contact Dimensions
• Insert Arrangement Tables and Alternate Insert Rotation
• Alternate Key Positions for BS9522 F0017
• Fastener Height Requirements and Panel Cutout Dimensions
• Available Insert Arrangements

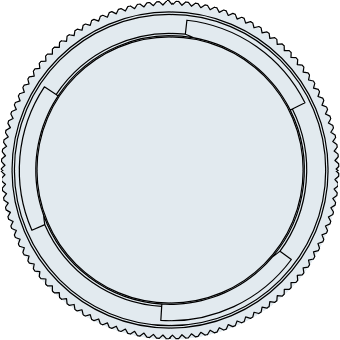

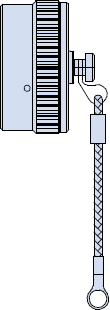

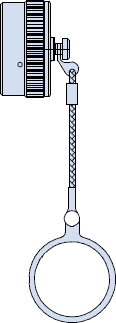

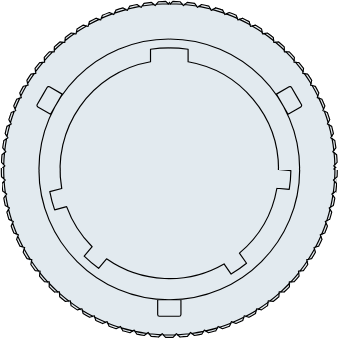

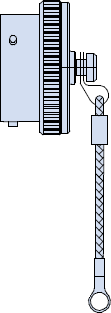

Reference

• Selection Guide: Connector Accessories and Tools
