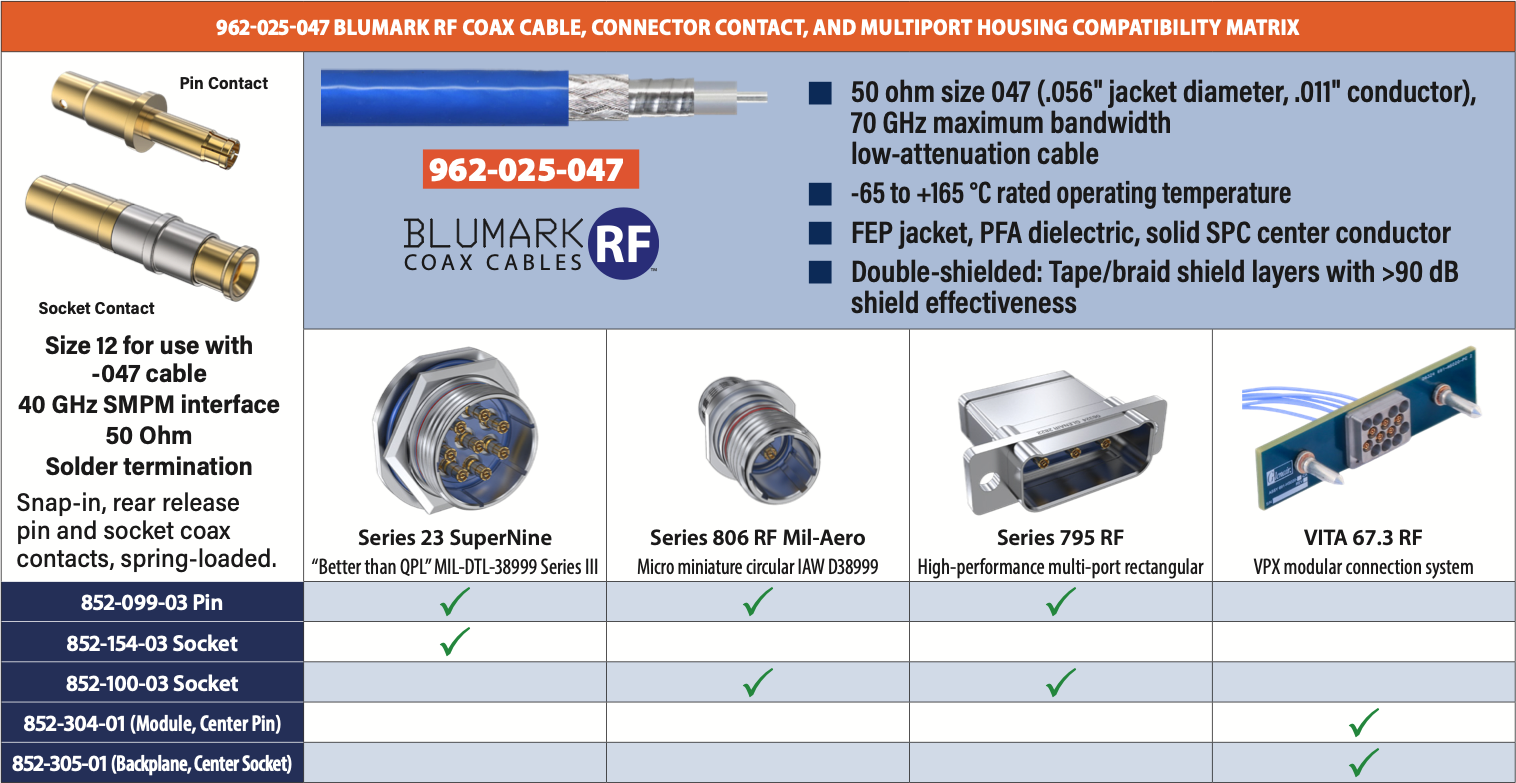

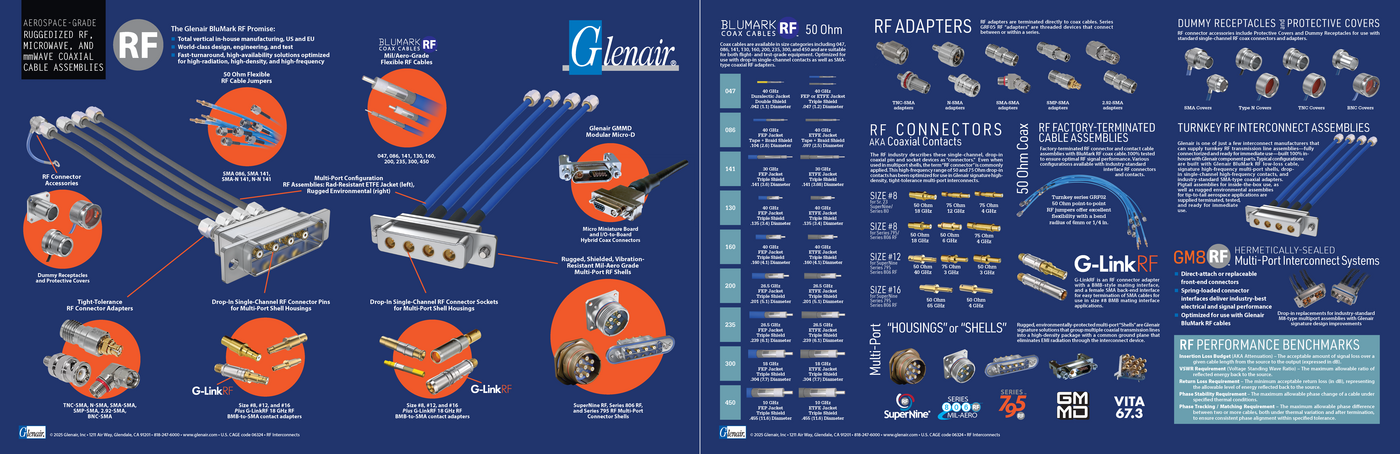

Compatibility Matrix
BluMark RF Coax Cable, Connector RF Contact, and Multi-Port Housing
RF, Microwave, and mmWave Interconnect Test Reports
RF, Microwave, and mmWave Interconnects for Military / Defense and Aerospace Applications
Technical RF Interconnect Whitepaper
RF, Microwave, and mmWave Interconnects and Coax Cable Assemblies for Mission-Critical Aerospace Applications.
Turnkey Coaxial Interconnect Solutions: Integrated RF Interconnect Assemblies built from Aerospace-Grade Connectors, Contacts, Adapters, and Glenair BluMark RF Coax Cables.
Coax Cables: Series 962 BluMark RF 50 Ohm
Series 962 BluMark RF 50 Ohm Coax Cables are available in eight size categories: 047, 086, 141, 130, 160, 200, 235, and 300. These low attenuation cables are suitable for aerospace applications and test equipment. Standard jacket is FEP. Radiation-resistant space-grade ETFE also available, consult factory.
- Low attenuation FEP, ETFE, and Polyurethane jackets
- Low-phase-change cables
- Eight size categories
- Compatible with standard RF/Microwave connectors
- Available red plague mitigation certification
- Environmentally sealed assemblies also available. Contact Factory.
962-025-047
50 Ohm Low-Loss Coax Cables, 40 GHz, PFA Dielectric
Series 962 BluMark RF
962-025-086
50 Ohm Low-Loss Coax Cables, 40 GHz, PFA Dielectric
Series 962 BluMark RF
962-025-141
50 Ohm Low-Loss Coax Cables, 30 GHz, PFA Dielectric
Series 962 BluMark RF
962-032-130
50 Ohm Low-Loss Coax Cables, 40 GHz, e-PTFE Dielectric
Series 962 BluMark RF
962-032-160
50 Ohm Low-Loss Coax Cables, 40 GHz, e-PTFE Dielectric
Series 962 BluMark RF
962-032-200
50 Ohm Low-Loss Coax Cables, 26.5 GHz, e-PTFE Dielectric
Series 962 BluMark RF
962-032-235
50 Ohm Low-Loss Coax Cables, 26.5 GHz, e-PTFE Dielectric
Series 962 BluMark RF
962-032-300
50 Ohm Low-Loss Coax Cables, 18 GHz, e-PTFE Dielectric
Series 962 BluMark RF
Series 23 SuperNine RF Multi-Port Connectors
Series 23 SuperNine RF multi-port connectors are advanced-performance MIL-DTL-38999 Series III type designs with superior shielding, sealing, and high-vibration performance. Unibody ground plane and insert arrangements per MIL-STD-1560.
High-Performance, "Better-than-QPL" MIL-DTL-38999 Series III
One to 29 contacts, Size 8, 12, or 16. 233-290 connectors have machined aluminum or stainless steel shells and fluorosilicone grommet for environmental protection. Plugs feature a copper alloy ground spring for EMI protection. Twenty-two contact layouts available in eight different shell sizes. Supplied without contacts, order #8 BMB, #12 SMPM, or #16 SMPS contacts separately.
- Twenty-two MIL-STD-1560 layouts for size #8, #12, or #16 RF contacts (sold separately)
- Glenair Signature G-LinkRF SMA Adapters
- Unibody connector design with common ground plane
- Environmental
- EMI spring on plugs

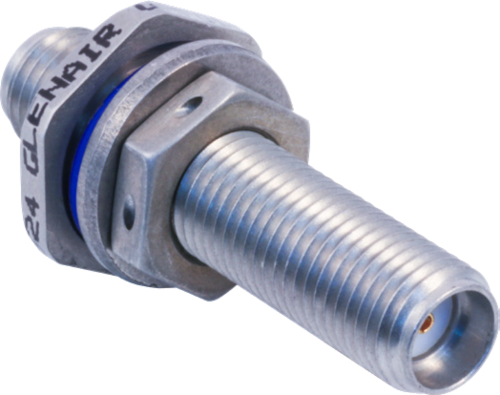

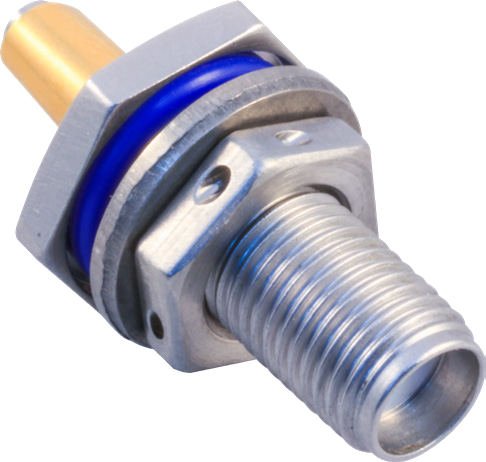

- Hermetic feedthru available
- Selection Guide: Environmental Plug and Receptacles and Hermetic Bulkhead Feed-Thrus
- SuperNine RF Insert Arrangements
18 GHz Size #18 BMB to SMA adapter

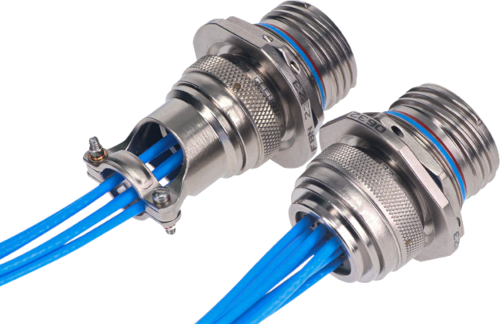

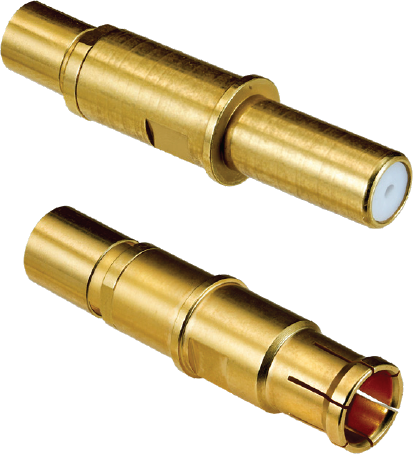

Series 806 Mil-Aero, Multi-Port RF Circular Connectors
Series 806 RF Mil-Aero multi-port connectors are micro-miniature connectors with reduced size and weight, plus advanced electrical, mechanical, and environmental performance. Unibody ground plane and RF contact insert arrangements.
Micro Miniature Circular IAW MIL-DTL-38999
One to 29 contacts, Size 8, 12, or 16. Series 806 RF connectors have machined aluminum or stainless steel shells and fluorosilicone grommet for environmental protection. Plugs feature a copper alloy ground spring for EMI protection. Twenty-five contact layouts available in eleven different shell sizes. Supplied without contacts, order #8 BMB, #12 SMPM, or #16 SMPS contacts separately.
- Mil-spec performance, micro miniature package
- Twenty-five layouts for size #8, #12, or #16 RF contacts (sold separately)
- Unibody connector design with common ground plane
- Environmental
- Scoop-proof interface
- EMI spring on plugs
- Snap-in, rear-release contacts
- Hermetic Feedthru Available
- Selection Guide: Series 806 Mil-Aero, Multi-Port RF Circular Connectors
- Series 806 RF Insert Arrangements
Series 795 High-Density, Multi-Port RF Rectangular Connectors
Series 795 RF high-density, multi-port connectors are a dual-lobe scoop-proof high-density rectangular series. One-piece connector shells provide a common unibody ground plane that eliminates radiation through the connector.
Precision-Machined and Shielded
Series 795 connectors accommodate up to nine #8 BMB-style coax contacts. Contacts snap into connector body and are removable. Environmentally protected with fluorosilicone face seal and rear grommet. One piece connector shell provides a common ground plane and also eliminates EMI radiation through the connector. Panel mount receptacle has conductive fluorosilicone O-ring for ingress protection. #8-32 jackscrews for secure mating in high vibration environments.
- Twenty-six layouts for size #8, #12, or #16 RF contacts (sold separately)
- Unibody connector design with common ground plane
- Environmental
- Scoop-proof interface
- EMI spring available on receptacle connectors
- Snap-in, rear-release contacts
- Selection Guide: Series 795 High-Density, Multi-Port RF Rectangular Connectors
- Materials and Finishes
- Specifications
- NASA Screening and Outgassing for Space-Flight Applications
- Contact Arrangements
- Panel Cutouts
Series GMMD Modular Micro-D Coax Connectors
Series GMMD modular Micro-D Coax connectors are supplied in SMT PCB receptacles and prewired plug assemblies. GMMD supports up to 16 lines of 50-Ohm coax as well as 75-Ohm and mixed arrangements.
The Series GMMD is an innovative modular Micro-D connector for RF coax and high-speed differential datalink applications. The unique micro miniature design of the GMMD also accommodates standard analog signal and power contacts, making it the most versatile Micro-D rectangular in the industry. GMMD leverages RF Coax contacts with Glenair Signature Micro-D and Nano TwistPin contact inserts. GMMD is supplied as factory-terminated pigtails, point-to-point jumpers, and SMT receptacles for easy PCB mounting.
GMMD-HRE / GMMD-HRPE
Series GMMD Modular Micro-D Coax ConnectorsHorizontal PCB-Mount
Coax Receptacles
GMMD-FP / GMMD-FPE / GMMD-FR / GMMD-FRP
Series GMMD Modular Micro-D Coax ConnectorsCoax and Combo Coax Cable Assembly Connectors
Back-to-Back Jumper and Flying-Lead Pigtail Assemblies
RF Jumpers and Assemblies
RF Contact jumpers and connector assemblies are factory-terminated point-to-point solutions with BluMark RF coax cable and industry-standard-interface RF connectors, or drop-in contacts for multi-port connectors. 100% tested to ensure optimal RF signal performance.
Contact Jumper and Connector Assemblies
- Factory terminated RF connector and contact cable assemblies with BluMark RF coax cable.
- 100% tested to ensure optimal RF signal performance.
- Various configurations available with industry standard interface RF connectors and contacts.
- Consult factory for vapor sealed, armored, phase matched or multi-port coax cable assemblies.
RF Assembly Loss Calculator
Calculate the typical performance (insertion loss) of a cable assembly using the formula:
Assembly Loss (dB) = (K1 · √F + K2 · F) · L + (C1 · √F) + (C2 · √F)

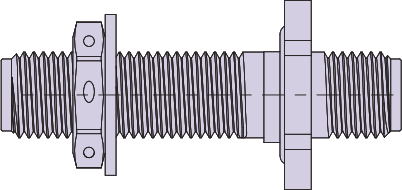

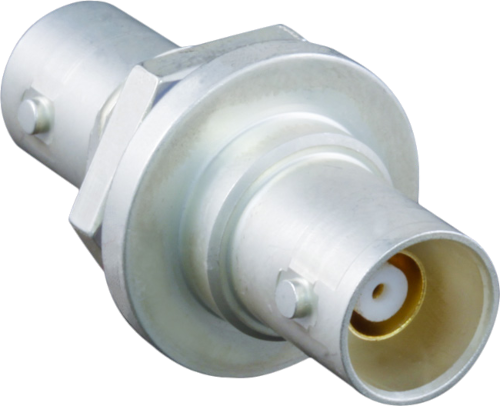

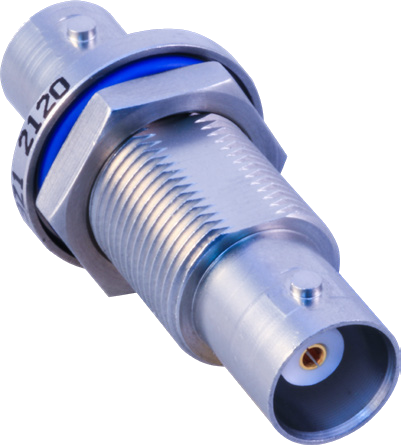

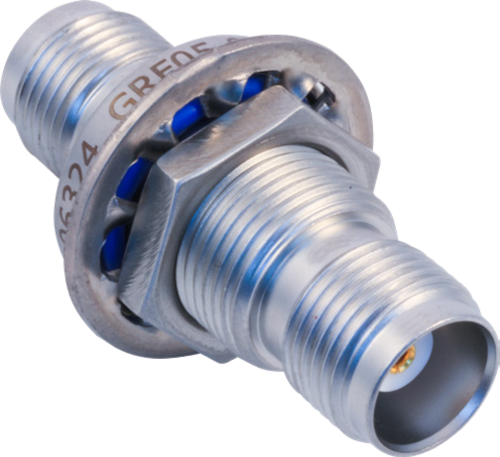

Series GRF05 RF Connector Adapters
Series GRF05 RF Adapters connect between or within a series. Frequently used as connector savers, male-female adapters protect RF jacks on instruments from wear-and-tear. 45° and 90° SMA male-female adapters provide extra clearance in cramped quarters.
Precision-grade Series GRF05 RF Adapters are used to connect between series or within a series. Frequently used as connector savers, male-female adapters protect RF jacks on instruments from excessive wear-and-tear. 45° and 90° angled SMA male-female adapters provide extra clearance in cramped quarters.
TNC to SMA Adapters
N to SMA Adapters
SMA to SMA Adapters
2.92 to SMA Adapters
SMP to SMA Adapters
BNC to SMA Adapters
RF Connector Accessories
Protective Covers and Dummy Receptacles for RF connectors: SMA, TNC, BNC, HN and N.
- RF connector accessories include Protective Covers and Dummy Receptacles for standard RF coax connectors.
- Aluminum or stainless steel Covers have sealing gaskets and a variety of attachment styles.
- Panel-mounted Dummy Receptacles provide stowage and protection for RF cables.
