High-Voltage, Thermocouples, and Pre-Terminated Jumpers

Glenair produces a wide range of specialty wires and cables including high-voltage, thermocouples, and pre-terminated jumpers. Wires and cables are made to or better than AS22759 and ANSI NEMA 27500 standards. We also produce custom wire and cable upon request with quick turnaround. All your wire and cable needs are here to support your mission critical applications.

Related Content

Home > Electrical Contacts > Specialty Wires and Cables

Thermocouple Wires/Cables

Reference

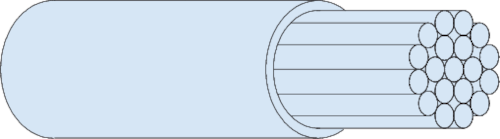

Insulated Thermocouple Wire, Types KN & KP, 967-046

967-046
Insulated Thermocouple Wire, Types KN & KP

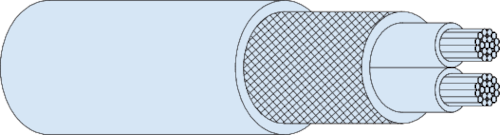

Thermocouple Cable, Twisted Pair, Specialty Braid, Jacketed, 968-039

968-039
Thermocouple Cable, Twisted Pair, Specialty Braid, Jacketed
Insulated Extension Wire, 967-025

967-025
Insulated Extension Wire

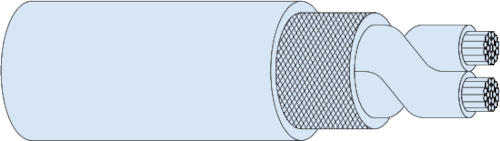

Thermocouple Extension Cable, Specialty Braid, Jacketed, 968-026

968-026
Thermocouple Extension Cable, Specialty Braid, Jacketed

Specialty Wire

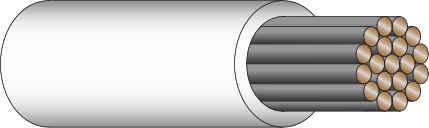

Nickel Coated Wire, 1000V Copper Conductor, PFA Insulation, 967-048

967-048
Nickel Coated Wire, 1000V Copper Conductor, PFA Insulation

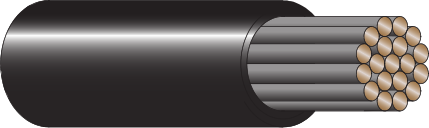

Tin Coated Wire, 1000V Copper Conductor, Polyurethane Insulation, 967-034

967-034
Tin Coated Wire, 1000V Copper Conductor, Polyurethane Insulation
High-Voltage Duralectric™ FEP-Insulated Wire, 961-066 and 961-067

961-066 and 961-067
High-Voltage Duralectric™ FEP-Insulated Wire

With Glenair signature Duralectric FEP insulation for high-voltage applications

  • 961-066
    Dual-layer Duralectric insulation and jacket, silver-coated high-strength copper conductor
  • 961-067
    Duralectric insulated wire, silver-coated copper conductor

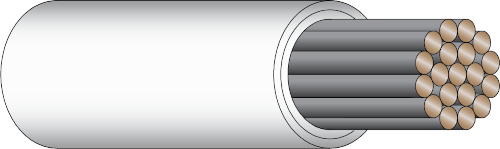

Tin Coated Wire, 1000V Copper Conductor, Crosslinked Modified ETFE Insulation, 967-028

967-028
Tin Coated Wire, 1000V Copper Conductor, Crosslinked Modified ETFE Insulation

  • Conductor is tin coated copper per AS29606.
  • Insulation is crosslinked modified ETFE (Ethylene-tetrafluoroethylene).
  • Color code per MIL-STD-681. See MIL-STD-681 for additional wire color codes.
  • Consult factory for custom stripe color order.
  • Testing per QCD-967-028-SCC for silver/copper, QCD-967-028-NCC for nickel/copper, and QCD-967-028-TCC for tin/copper.

Jumpers/Cables

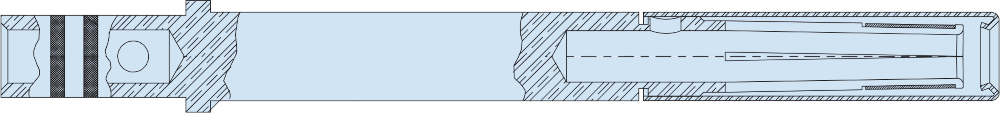

Thermocouple Socket with Crown Ring for MIL-DTL-38999 Series III, 850-329

850-329
Thermocouple Socket with Crown Ring for MIL-DTL-38999 Series III

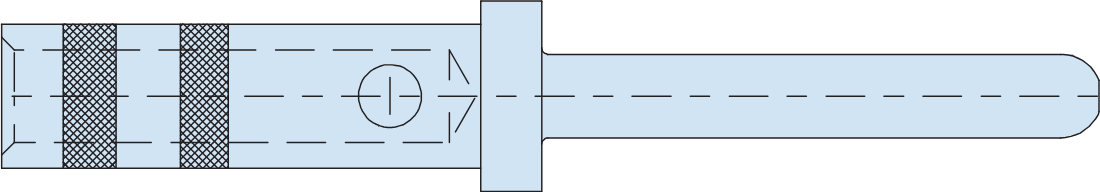

Thermocouple pin for MIL-DTL-38999 Series III, 850-366

850-366
Thermocouple pin for MIL-DTL-38999 Series III
Thermocouple jumper for MIL-DTL-38999 Series III, 857-451

857-451
Thermocouple jumper for MIL-DTL-38999 Series III

  • 01 = Thermocouple Cable, Twisted Pair, P/N: 968-039
  • 02 = Extension Thermocouple Cable, Twisted Pair, P/N: 968-026
Jumper Wire M22759 with M39029/56 and 58 Contacts, 8577-0001

8577-0001
Jumper Wire M22759 with M39029/56 and 58 Contacts

  • 8577-0001M = MIL-SPEC M22759
  • 8577-0001G: Made IAW M22759 (GS22759)

Thermocouple Contacts

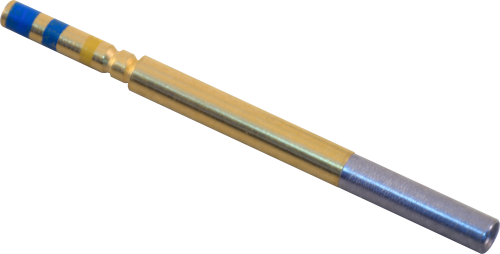

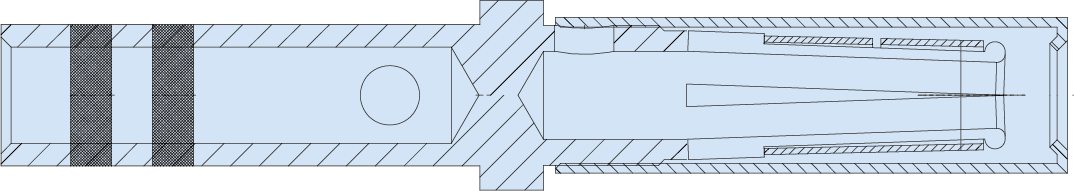

Socket with Crown Ring for Connector, 850-329

850-329
Socket with Crown Ring for Connector

  • Rated to 500 mating cycles
  • Special Purpose Thermocouple Contacts
  • MIL-DTL-38999 Series III Type
  • These contacts are equivalent to the applicable requirements specified in AS39029/121
  • Crimp tooling per AS39029/88
  • Assembly to be bagged and tagged with glenair's name, part number and date/lot code or po number if purchased
Thermocouple Wire Barrel Reducer Bushing, 859-172

859-172
Thermocouple Wire Barrel Reducer Bushing

  • Bushings are designed to reduce the barrel size of M39029/87, M39029/88 and M39029/89 thermocouple contacts to accommodate smaller wire size.
Thermocouple Pin Contact, AS39029/87 Type, 850-023

850-023
Thermocouple Pin Contact

Fits D38999 Series I, II, III and IV and M24308 Connector

  • AS39029/87 Type
Thermocouple Socket Contact, AS39029/88 Type, 850-024

850-024
Thermocouple Socket Contact

Fits D38999 Series I, III and IV Connector

  • AS39029/88 Type
Thermocouple Socket Contact, AS39029/89 Type, 850-025

850-025
Thermocouple Socket Contact

Fits D38999 Series II and M24308 Connector

  • AS39029/89 Type
Thermocouple Socket Contact, Size #20, AS39029/63 Type, 850-111

850-111
Thermocouple Socket Contact, Size #20

Fits MIL-DTL-24308 and Series 28 HiPer-D Connectors

  • AS39029/63 Type
Thermocouple Pin Contact, Size #20, AS39029/64 Type, 850-112

850-112
Thermocouple Pin Contact, Size #20

Fits MIL-DTL-24308 and Series 28 HiPer-D Connectors

  • AS39029/64 Type
