High-Speed Ethernet, Datalink, and Video Interconnect Solutions Incorporating Coax, Twinax, Quadrax and El Ochito® Octaxial Shielded Contact Technologies
MIL-DTL-38999 Series III Type

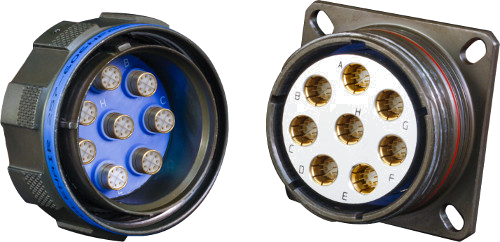

Plug and receptacle connectors IAW D38999 with special inserts to accommodate high-speed, shielded contacts. Pre-wired factory cable jumpers for all solutions.
- Size 22D SpeedMaster™ solutions from one to seven contact insert arrangements.

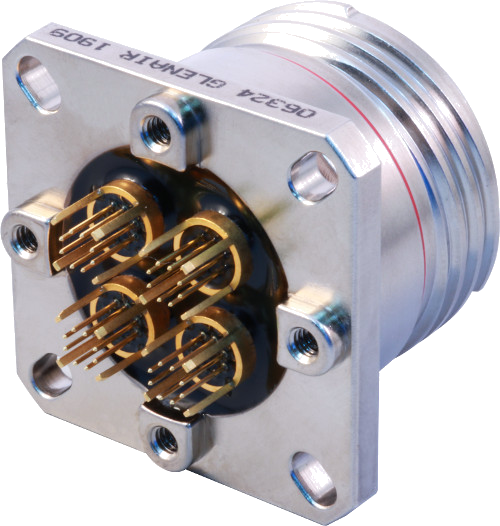

- Tooled and ready-to-ship high-speed hybrid insert arrangement connectors for size #8, #12, and #16 shielded contacts. Nineteen layouts for High-Speed Coax, Twinax, Quadrax and El Ochito® contact solutions.
- Supported applications: 10/100/1G/10G BASE-T Ethernet, analog/digital video, 1553 databus and general RF or differential data transmission.

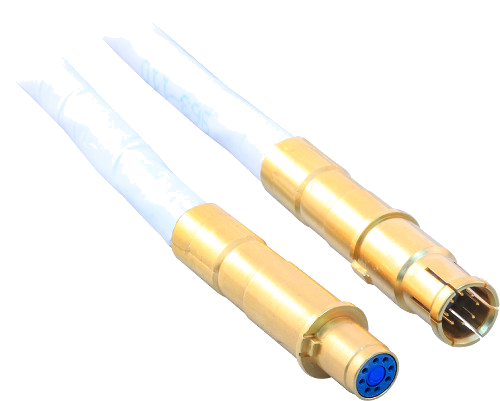

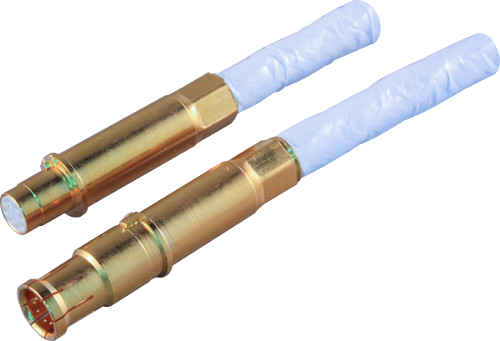

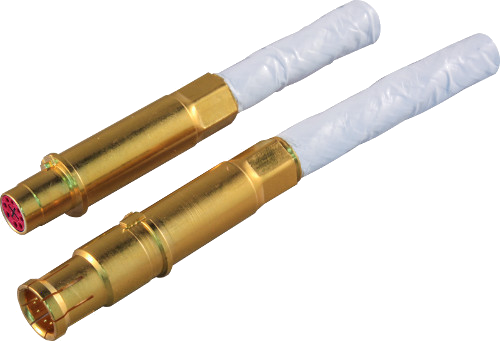

- El Ochito® contact technology: El Ochito® for 10G Ethernet (El Ochito® white), USB 3.0 (El Ochito® blue), and Multi gigabit datalink (El Ochito® red) applications such as HDMI, SATA and Displayport. Available pigtail and jumper assemblies.
- SpeedMaster™ 10G Ethernet contact solution featuring industry standard size 22D contacts for fast easy termination and repairability.
General Reference
- Overview: Mil-Aero Ethernet, Video, and High-Speed Data Solutions
- Ethernet, Video, and High-Speed Data Applications
- Performance Specifications | Material and Finish | Panel Cut-Outs
Contact Arrangements
PCB Footprints
Panel Cutouts and Other Specifications
El Ochito®: The Ultimate High-Speed Contact
"The Little Eight": Eight miniaturized contacts in a standard size #8 shielded module, with dramatic size and weight reduction compared to all other available solutions.
Reference
- Overview: El Ochito®: The Ultimate High-Speed Contact
- El Ochito® Octaxial Aerospace-Grade Contacts
- El Ochito® Octaxial "White," "Blue," and "Red" Contact Specifications
- El Ochito® "White" Signal Integrity Data
- El Ochito® "Blue" Signal Integrity Data
- El Ochito® Octaxial Pin and Socket Contacts
- Shielded PC Tail Contacts - Dimensions and Footprints
- El Ochito® Contact Configuration and Mod Code 909
- El Ochito® Octaxial Contact and Cable Assembly Tools and Accessories
Turnkey Factory-Terminated El Ochito Pigtail and Jumper Assemblies
Space-Grade, High-Speed Circular, Blind-Mate Connectors
Reference
- Overview: Space-Grade for SuperNine® High-Speed Connectors
- Class G and NASA Space-Grade Guidelines
- Space-Grade, High-Speed Circular, Blind-Mate Connectors
- Environmental Blind-Mate and Zero Extraction Force Connectors
253-044
High-Speed Plug, Fixed Rear Panel-Mount Series, Roll-On / Roll-Off Nose
253-045
High-Speed Receptacle, Float-Mount Series, Environmental
253-047 and 253-048
High-Speed Plug/Receptacle Series, Adjustable Zero Separation Force
253-052
High-Speed Plug, Fixed Rear Panel-Mount Series, Roll-On / Roll-Off NoseSpeedMaster™ Contact System

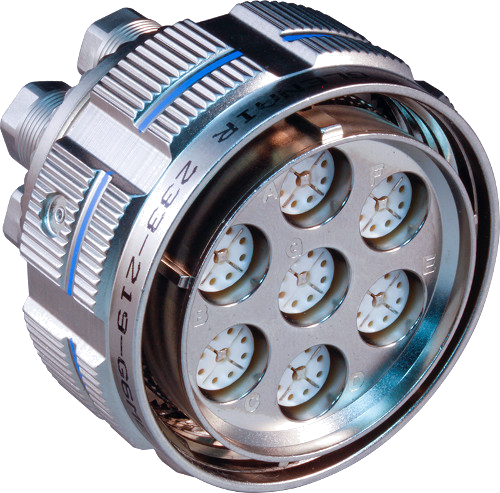

High-Speed Contact Modules and Inserts for use in MIL-DTL-38999 Series III Connectors

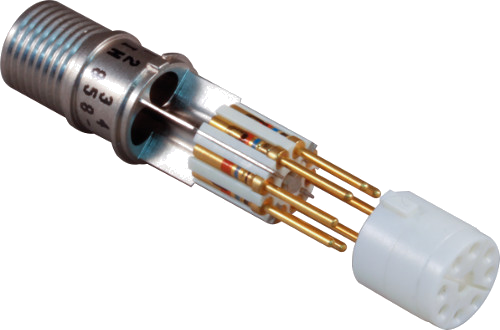

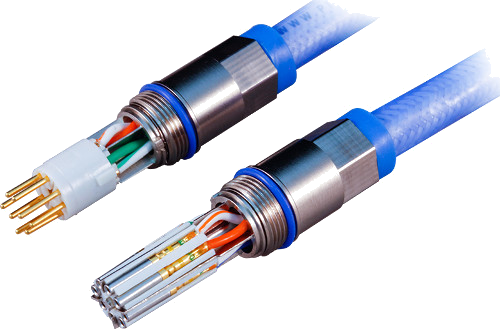

SpeedMaster™ 10G is a dedicated contact module and interconnect insert package designed for use in MIL-DTL-38999 Series III type SuperNine™ connectors. SpeedMaster™ meets the unique installation, performance requirements, and use preferences of the aerospace industry. Optimized for high-speed Cat 6A Ethernet, the SpeedMaster™ 10G system offers industry-leading NEXT, return loss and insertion loss performance due to its highly-engineered isolation and separation architecture. Easy to assemble, terminate, install, and repair, the SpeedMaster™ 10G utilizes size #22D contacts, tools, and cable, and meets the broad range of aerospace industry requirements for vibration, temperature cycling, durability, and safe, reliable performance. Applications include defense, military and commercial aircraft electronics, in-flight entertainment, medical equipment, rail electronics systems, and industrial automation/robotics.
Reference
- Overview: SpeedMaster™ Contact System
- SpeedMaster™ Octaxial 10G, Cat 6A, Size #22 Contact System
- Performance Specifications
- 10GBASE-T Cat 6A Compliance Testing Contacts
