AquaMouse™

Small Form-Factor 3500 PSI Underwater Connectors

Series 802

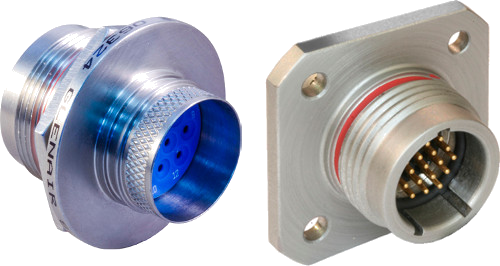

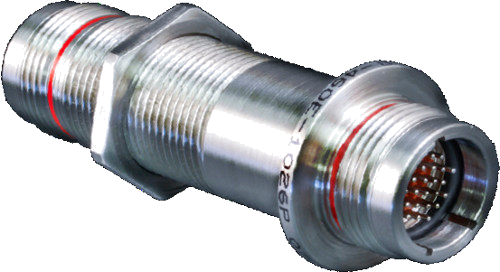

Originally developed for petroleum pipeline inspection equipment, Series 802 connectors are available in ten sizes from 1 to 130 contacts and equipped with Viton® O-rings to withstand exposure to corrosive chemicals and high temperature environments. These connectors feature high density crimp Mighty Mouse inserts, 316 stainless steel or marine bronze shells and a piston O-ring for hydrostatic sealing. Series 802 insulated wire, panel mount receptacles can be ordered as square flange, in-line or jam-nut versions. Choose integral shield termination platform or accessory thread for use with a variety of strain relief options. Crimp style gold–plated crimp contacts accept #12–30 wire. Connectors are backfilled with epoxy potting compound. Hermetic glass–sealed connectors come with solder cup contacts (non-removable) or PC tails. 100% tested to meet 1 x 10^-7 cc/sec helium leakage. Open face pressure rating of 1000 PSI, 3500 PSI in the mated condition.

Reference

• Overview: AquaMouse™
• Performance Specifications and Material and Finish
• Contact arrangements
• Standard PCB Footprint
• Hybrid PCB Footprints

Product Datasheet

• AquaMouse 3500 PSI Miniature Underwater Connectors

Underwater / Subsea > AquaMouse™

---
