AS39029 Signal, RF, High-Frequency Microwave, and El Ochito™
Electrical connector contacts used in multi-pin military standard and commercial equivalent connectors (MIL-DTL-38999, MIL-DTL-24308 and others) are controlled by the MIL-DTL-39029 specification (now SAE AS39029) which regulates materials, dimensions, plating thicknesses, electrical properties and other key parameters. Contact types include crimp, coaxial, thermocouple, and wire-wrap variants all exactingly manufactured to strict M39029 requirements. Mil-standard connectors are typically supplied with loose contacts in both pin and socket configurations for a broad range of wire gauges.
Glenair brings a new perspective to the supply of high-performance Mil-Spec and commercial electrical contacts: High Availability! Whether you need a standard duty socket contact for a MIL-DTL-28840 connector or a short-run of shielded Quadrax, we have you covered with products that are always in stock — with no dollar, quantity or length minimums. We also supply many special-purpose and custom contact designs including pneumatic contacts, Octaxial 10Gbit Ethernet contacts and more.
 |
AS39029 QPL and Glenair Commercial High Performance Connector ContactsSlideshow Presentation |
 |
RF, Microwave and High Speed ContactsFor MIL-DTL-38999, Series 23 SuperNine®, Series 80 Mighty Mouse, and Series 79 Micro-Crimp® Connectors Series 85 Slideshow Presentation |
 |
SAE-AS39029 Crimp ContactsHigh Performance Pin and Socket Crimp Contacts Slideshow Presentation |
 |
Bushings and AdaptersProvides Cushioning and Protection to Wire Bundles |
 |
Special Purpose High Performance ContactsPneumatic, PC Tail, High Power, Solder Cup and More Slideshow Presentation |
 |
Specialty Wires and CablesHigh-Voltage, Thermocouples, and Pre-Terminated Jumpers Glenair produces a wide range of specialty wires and cables including high-voltage, thermocouples, and pre-terminated jumpers. Wires and cables are made to or better than AS22759 and ANSI NEMA 27500 standards. We also produce custom wire and cable upon request with quick turnaround. All your wire and cable needs are here to support your mission critical applications. |
 |
El Ochito® High-Speed Octaxial Contacts, Pre-Wired Pigtails, and Jumper AssembliesEthernet, SuperSpeed USB, HDMI, DisplayPort, SATA Contacts, and Jumper Assemblies. For Series 23 SuperNine®, Series 80 Mighty Mouse, Series 28 HiPer-D®, Series 79, ARINC 600, and EPXB Connectors. |
 |
kV Seal™ High-Voltage Contact Assemblies13.5 kVDC–22 kVDC High-Voltage, Low Amperage Insertable / Removable Contact Assemblies for High-Voltage DC Circuit Applications |
 |

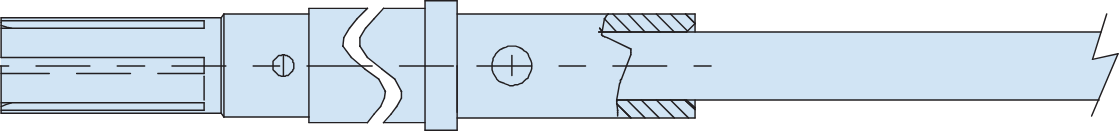

8577-0001
|
