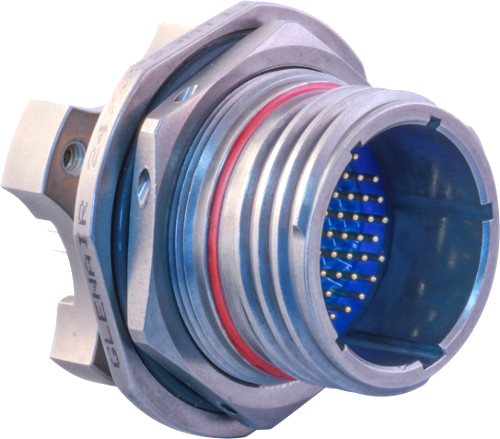

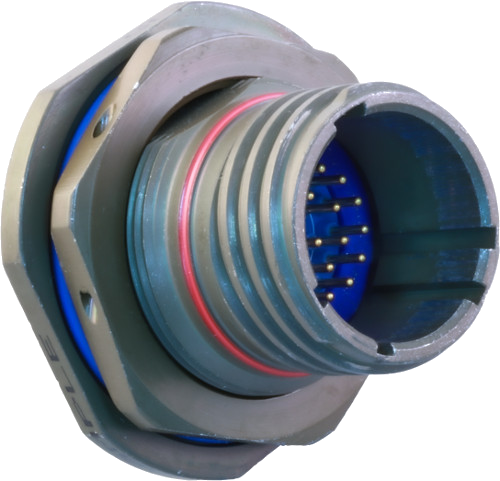

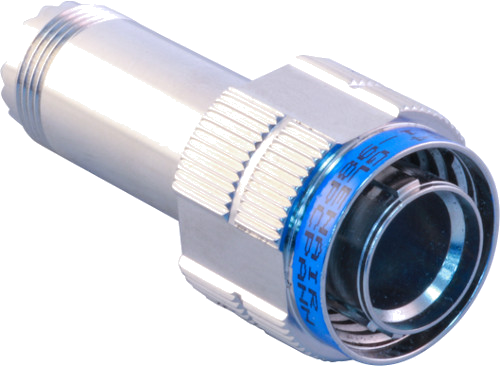

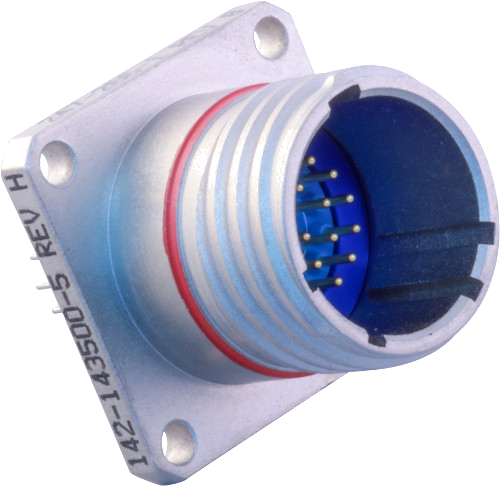

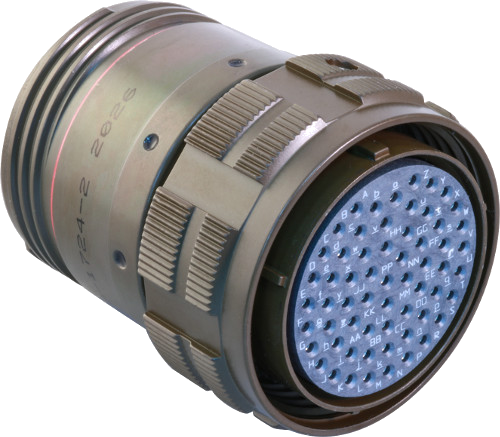

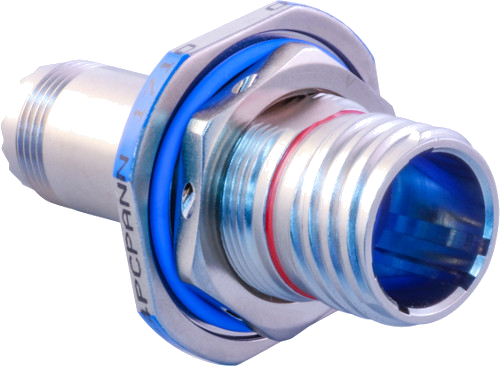

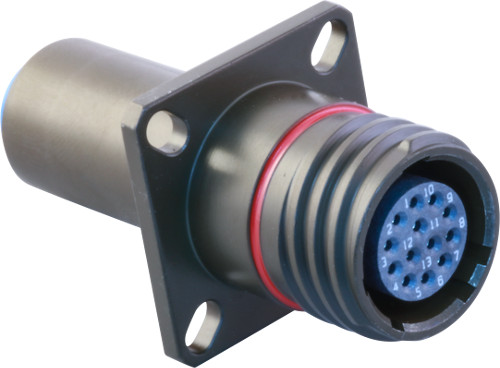

C, L-C, C-L, and Pi Filter Configurations with and without Integrated TVS Devices—MIL-DTL-38999 and other Mil-Standard and Glenair Signature Series
Series 240 EMI/RFI Filter Connectors
EMI/RFI filter connectors are designed to suppress conducted electromagnetic interference (EMI), radio-frequency interference (RFI), and high-rate field (HRF) noise that can degrade signal integrity or disrupt sensitive electronic systems. These connectors incorporate internal passive filtering circuitry—typically capacitors arranged in C, L-C, C-L, or Pi network configurations—to attenuate unwanted high-frequency energy directly at the connector interface. Planar multilayer ceramic capacitor arrays are integrated into D38999 Series I, II, III, and IV filter devices for drop-in filtering of mission-critical avionic systems.
For enhanced protection against high-energy transient events, Glenair EMI/EMP filter connectors may also be equipped with transient voltage suppression (TVS) diodes. TVS devices clamp voltage spikes caused by lightning strikes, electrostatic discharge (ESD), or electromagnetic pulse (EMP) events before damaging downstream electronics, making them ideal for military, aerospace, and other rugged mission-critical applications. EMP solutions are likewise packaged in D38999 configurations, as well as other military standard shell styles.
Glenair manufactures a comprehensive range of EMI/RFI filter connectors for EMI/EMP management in harsh-environment interconnect systems, including military aerospace platforms. Filter connectors—typically supplied as receptacles—are designed to meet applicable connector performance specifications and mate with standard plugs of the same insert arrangement and opposite contact gender. Planar multilayer ceramic capacitor arrays and TVS diodes may be integrated into both standard catalog products and build-to-order designs.
To ensure long-term field reliability, Glenair employs a state-of-the-art diode burn-in and screening process, testing both leaded and surface-mount TVS devices with continuous leakage-current monitoring throughout the entire qualification cycle.
Glenair is the only manufacturer offering both standard catalog and build-to-spec EMI/RFI filter connector solutions across the full range of currently specified military aerospace circular and rectangular connector standards, including MIL-DTL-38999, MIL-DTL-83513, MIL-DTL-24308, ARINC 600, and more. Our 100% vertically integrated manufacturing facility supports every aspect of filter connector production, including in-house fabrication of multilayer ceramic planar capacitor arrays. This vertical integration enables industry-leading turnaround times for both custom and catalog EMI/EMP filter connector solutions. Products with same-day stocking inventory are identified with a “SAME-DAY” badge on these pages.
Capabilities Include
- C, L-C, C-L and Pi filter electrical configurations
- PC tail, solder cup or crimp-contact termination
- 10 to 1,000,000 pF capacitance
- Special high operating temperature solutions
- Planar, multilayer ceramic capacitive filters, with and without transient voltage suppression diodes
Glenair EMI / EMP Filter Connectors for Mission-Critical Military / Defense and Aerospace Applications
Video Overview
Product Datasheet
Introduction to Filter Connectors
Application Notes
- Practical Solutions for Electromagnetic Compatibility
- Application Checklist
- EMC Materials and Technologies
- EMI/EMP Filter Connector Overview
- Multilayer Ceramic Planar Capacitor Arrays
- EMI Filters and Transient Voltage Suppression Packaging
- Transient Voltage Suppression Workshop with Serge Gigawatt
- Transient Voltage Suppression - Diode Selection Guide
- Insertion Loss and Capacitance Values
- Insertion Loss Evaluation and Connector Customization
- Space Grade Applications, Soldering and Lightning Strike
- EMI/EMP Glossary
- Diode Burn-In Services
- Compliance Matrix for D38999 Series III Type Filter Connectors
Part Number Index
PC Tail Termination Note
To prevent detrimental intrusion of cleaning solvents/water into the connector when terminating, the connector must be protected IAW IPC J-STD-001 and/or NASA STD-8739.3. For assistance and/or additional information, please contact the factory.
EMI / EMP Filter Connectors and TVS Devices for Rugged Mission-Critical Applications
C, L-C, C-L, and Pi Filters plus Custom TVS Solutions
Series 240
 |
Military Standard Type Circular Filter ConnectorsFor MIL-DTL-38999 Series I, II, III, and IV, MIL-DTL-26482 Series II, MIL-DTL-83723 Series III, ITS Series (VG 95234 5015 Type), MIL-DTL-5015, MIL-DTL-28840, and other Circular MS Series Section B |
 |
Series 80 Mighty Mouse Filter ConnectorsUltra Small and Lightweight EMI/EMP Filter Connectors Section C |
 |
MIL-DTL-83513 Type Micro-D Filter ConnectorsFor Land, Sea, and Space Applications where Guaranteed Performance is an Absolute Mission Requirement Section D |
 |
MIL-DTL-24308 Type D-Subminiature and HiPer-D Filter ConnectorsMIL-DTL-24308 Intermateable Filter Connectors with Advanced Environmental/Shielding Performance Section E |
 |
Series 970 PowerTrip® Filter ConnectorsThe Power Connector for Extreme Environments — Now Available EMI/EMP Filter Class Section F |
 |
Series 79 Micro-Crimp Filter ConnectorsThe Micro Miniature Rectangular with Advanced Environmental Performance — Now Available in EMI/EMP Filter Class Section G |
 |
ARINC 600 Filter ConnectorsGlenair Manufactures a Full Range of ARINC 600 Filter Connectors for use in EMC/EMP Management of Electronic Systems and Interconnect Cabling Section H |
 |
TVS Filter ConnectorsConfigurable, Fast-Turnaround, Catalog Transient Voltage Suppression Filter Connectors Section J |
 |
Testing AccessoriesRugged, Reliable Performance for On-Site Testing Section K |
 |
Conductive Gaskets And AccessoriesKey Elements in Every Interconnect System Designed for Optimal EMC Performance Section L |
 |
Series 806 Mil-Aero Micro Miniature
|
 |
Series 806 Mil-Aero Micro Miniature
|

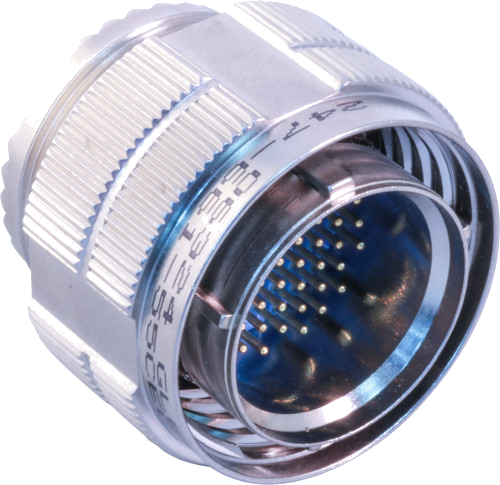

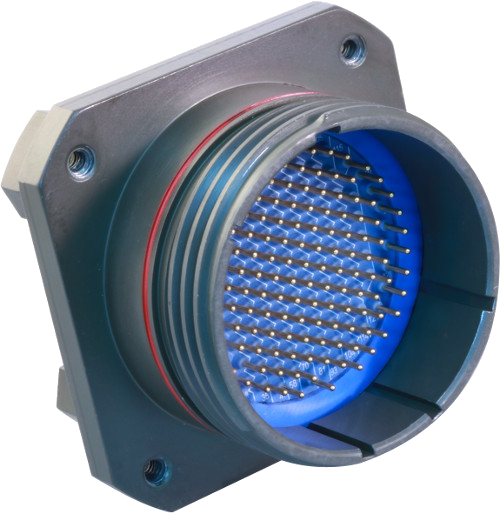

EMI/RFI Filter Connectors – SuperNine® Advanced Performance MIL-DTL-38999 Series III Type
