Micro-D Hermetic Connectors

Micro-D Hermetic Connectors for High Pressure/Low Leakage Applications - Glass-to-Metal Seal

MIL-DTL-83513 type Micro-D hermetic connectors feature machined Kovar® shells and contacts with moisture resistant plating and paired with high performance contacts that make these connectors an excellent solution for high pressure and low leakage applications where vibration and shock are a concern. Hermetic Micro-D Connectors are rated at 1 x 10^-7 cc/helium per second and are available in solder cup, PC tail and prewired pigtail termination options. Choose from 9 shell sizes to accomodate 9 to 100 sockets. Glenair Micro-D hermetic connectors are in stock and available for immediate shipment.

Reference

Micro-D Lightweight CODE RED Hermetic Connectors

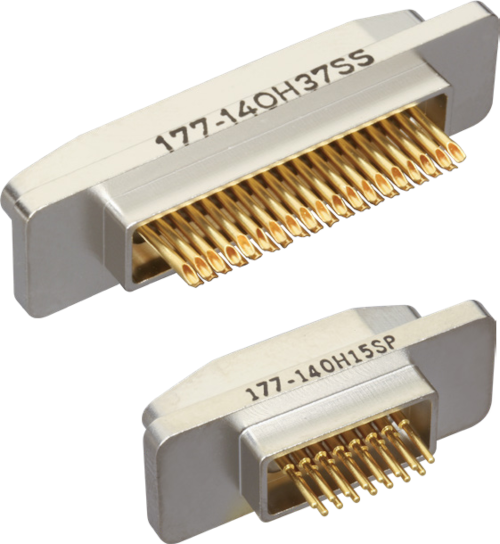

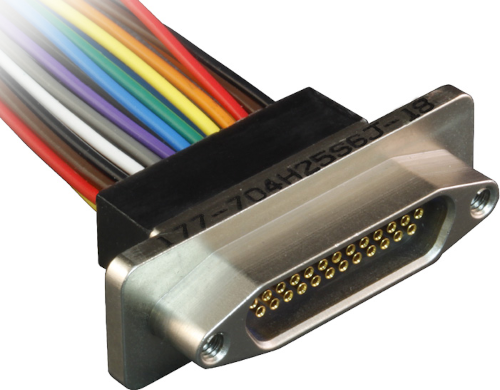

	177-140H Solder Cup or PC Tail and 177-704H Insulated Wire Micro-D Hermetic Connectors Solder, Braze or Weld Mount MIL-DTL-83513 Type Micro-D Hermetic Connectors Solder, Braze, or Weld 177-140 and 704 Hermetic Micro-D connectors. Featuring a matched glass-to-metal seal, these socket receptacles are designed for panel mounting. Kovar® Shells and Contacts Complies with applicable MIL-DTL-83513 space requirements and are 100% intermateable with standard connectors. Choose 9 to 100 Contacts With gold-plated contacts and nickel-plated shells. These connectors feature integral female jackposts.

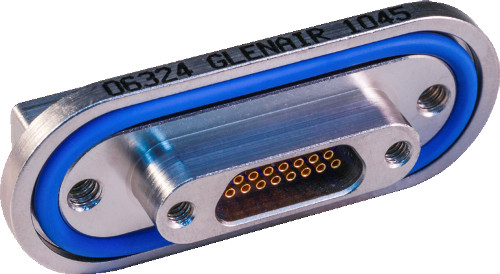

	177-705H Solder Cup or PC Tail and 177-706H Insulated Wire Micro-D Hermetic Connectors Rear Panel Mount MIL-DTL-83513 Type Micro-D Hermetic Connectors Fluorosilicone O-Ring Eliminates the cost of soldering the connector to a bulkhead. Kovar® Shells and Contacts Complies with applicable MIL-DTL-83513 requirements and are 100% intermateable with standard connectors. Solder Cup, PC Tail or Pre-Wired and Fully Potted Suitable for #26 gage wire or smaller, solder cup versions feature gold-plated contacts. Choose PC tails for attachment to flex circuits or rigid boards. Solder cup versions are also available pre-wired and potted.

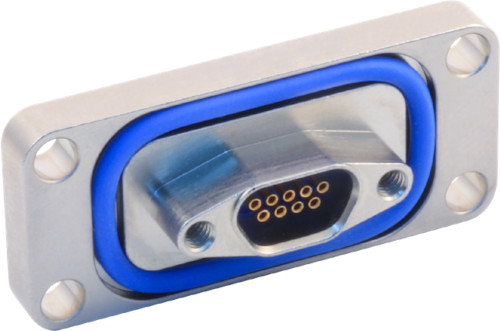

	1770-3687 Panel Mount O-Ring Seal, Socket-Socket, Bulkhead Feed-Thru MIL-DTL-83513 Type Micro-D Hermetic Connectors O-Ring Mounting Eliminates the cost of soldering the connector to a bulkhead. Kovar® Shells and Contacts Complies with applicable MIL-DTL-83513 requirements and are 100% intermateable with standard connectors.

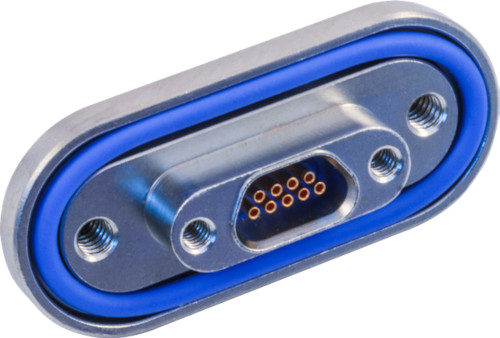

	1770-5588 O-Ring Seal, Pin-Socket, Bulkhead Feed-Thru MIL-DTL-83513 Type Micro-D Hermetic Connectors O-Ring Mounting Eliminates the cost of soldering the connector to a bulkhead. Kovar® Shells and Contacts Complies with applicable MIL-DTL-83513 requirements and are 100% intermateable with standard connectors.
	1770-5600 Shell Size 9-51 Front Panel Mount MIL-DTL-83513 Type Micro-D Hermetic Connectors Fluorosilicone O-Ring Eliminates the cost of soldering the connector to a bulkhead. Kovar® Shells and Contacts 100% intermateable with standard connectors.

Micro-D Lightweight CODE RED Hermetic Connectors

Hermetically-sealed interconnects used in vacuum or high-altitude applications prevent moisture and other contaminants from damaging sensitive electronic equipment. Glass-to-metal hermetic sealing has been the gold standard in the aerospace and petrochemical industries for decades due to the strength and long-term durability of the materials used. But glass-to-metal seal hermetics come with a big price tag in both weight and electrical resistance.

CODE RED is an innovative sealing encapsulant and application process—invented by Glenair—that provides durable hermetic sealing in a lightweight aluminum package. CODE RED allows for the use of conventional gold-plated copper alloy contacts, significantly improving electrical performance. CODE RED hermetic connectors are available now in Glenair SuperNine® (D38999 Series III type metal and composite), Series 80 Mighty Mouse, and M24308 D-Sub; and deliver reliable, life-of-system 1x10^-7 max leak-rate hermetic sealing. Special non-magnetic (zero residual magnetism) versions are also available, consult factory.

Reference

	1770-5012 CODE RED Lightweight Hermetic, Solder Cup or PC Tail Connectors MIL-DTL-83513 Type Micro-D Hermetic Connectors Stainless steel or aluminum alloy shells Choose 9 to 51 Contacts per MIL-PRF-83513 With gold-plated contacts
	1770-4051 CODE RED Lightweight Hermetic, Solder Pot, Pin Contact Connectors MIL-DTL-83513 Type Micro-D Hermetic Connectors Aluminum alloy shell Choose 9 to 100 Contacts per MIL-PRF-83513 With gold-plated contacts
	1770-4052 CODE RED Lightweight Hermetic, Solder Pot, Socket Contact Connectors MIL-DTL-83513 Type Micro-D Hermetic Connectors Aluminum alloy shell Choose 9 to 100 Contacts per MIL-PRF-83513 With gold-plated contacts
	1770-5260 CODE RED Lightweight Hermetic Feed-thru Connectors MIL-DTL-83513 Type Micro-D Hermetic Connectors Aluminum alloy shell Choose 9 to 100 Contacts per MIL-PRF-83513 With gold-plated contacts
