Series 794 VersaLink Connectors

Precision-Machined, Shielded Rectangular with VersaLink™ Contact Technology

Series 794

A rugged, versatile, multi-port, multi-gigabit connector, the Series 794 with shielded VersaLink twinax contact technology is an ideal rectangular solution for 10Gb Ethernet, 100 Gb Ethernet, USB 3.0, USB 3.2, HDMI, DisplayPort, and SATA applications. Offered in layouts from 1 to 36 high-speed VersaLink modules or in hybrid size #22D contact layouts with 1 to 8 VersaLink shielded twinax pairs. Panel mount options include float mounts, O-rings, EMI springs, and guide pins. Series 794 VersaLink shells are precision-machined aluminum and fully shielded for optimal electromagnetic compatibility.

Dual-lobe scoop-proof shells prevent mating damage
Available with optional polarizing keys
Ideal for blind-mate applications

About Series 794

The Series 794 brings high-speed board-to-wire capability to the Glenair Series 79 family of ultraminiature rectangular connectors. The Series 794 is intended for avionics and aerospace equipment exposed to high-vibration and hostile environments.

The 794 supports VersaLink High-Speed twinax contact modules for 40 Gb Ethernet, 100 Gb Ethernet, USB 3.2, HDMI, and other protocols.

Machined aluminum alloy shells feature dual lobes for polarization. Pin contacts are recessed to prevent scooping damage. Discrete crimp contacts conform to M39029 requirements and are rear release.

EMI grounding fingers in the receptacle minimize EMI. Fluorosilicone face seals and wire grommets protect from moisture and contamination. Panel mount versions are available with an O-ring—or for improved panel bonding—a metal spring.

Vertical Board mount PCB versions available.

Reference

General Information: Series 794

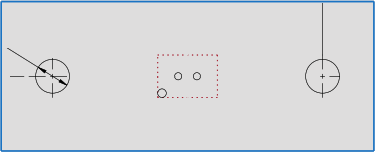

	799-196 Series 794 PCB Layouts

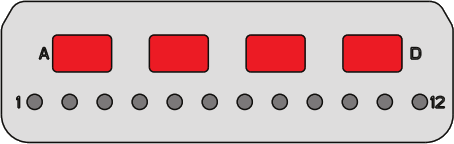

	799-184 Insert Arrangements - Pin Interface Shown
	Plug Cutaway Views
	Receptacle Cutaway Views
	Outgassing Modification Codes Series 794 connectors are available with upgraded screening and vacuum bakeout for high-reliability space programs. Space Grade Modification Codes NASA Screening Requirements (EEE-INST-002 TABLE 2C) Outgassing Properties of Materials Used in Series 79 Connectors

Cable Connectors

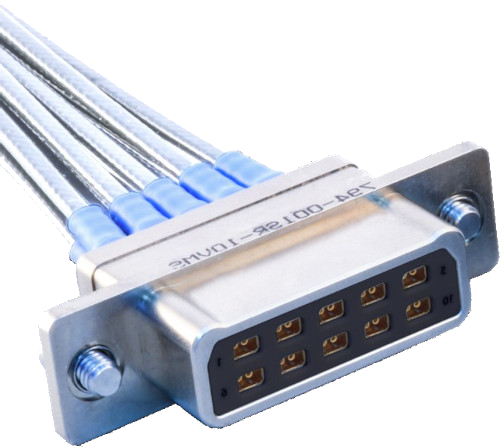

	794-001 Cable Mount Plug with Socket Contacts Standard Flange

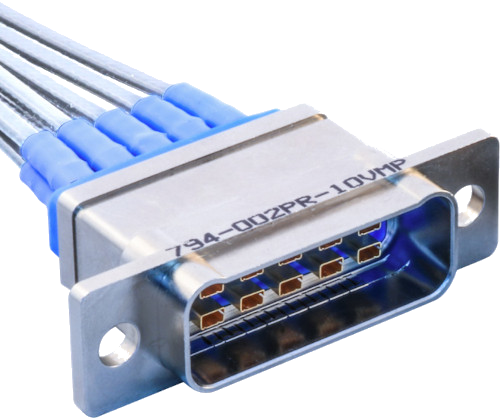

	794-002 Cable Mount Receptacle with Pin Contacts Standard Flange

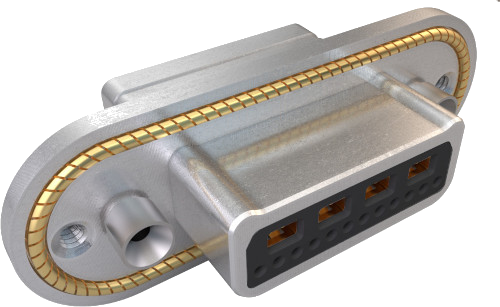

	794-003 Rear Panel Mount, Socket Contact Plug Rear Panel Mount Flange O Ring or EMI Spring

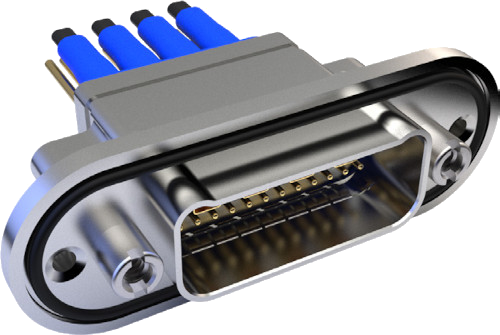

	794-004 Rear Panel Mount, Pin Contact Receptacle Rear Panel Mount Flange O Ring or EMI Spring

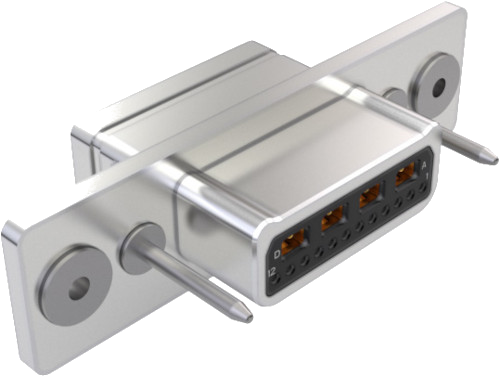

	794-005 VersaLink Float Mount, Socket Contact Plug
	794-006 VersaLink Float Mount, Pin Contact Receptacle

Printed Circuit Board Connectors

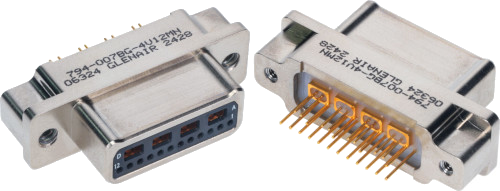

	794-007 VersaLink Straight PCB Mount, Socket Contact Plug Standard Flange

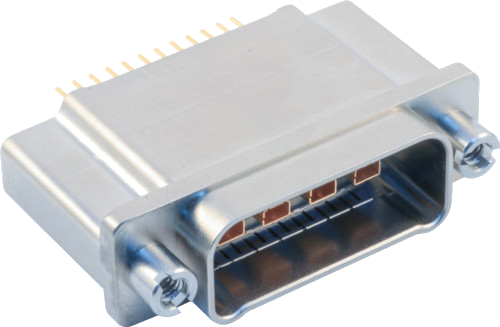

	794-008 VersaLink Straight PCB Mount, Pin Contact Receptacle Standard Flange

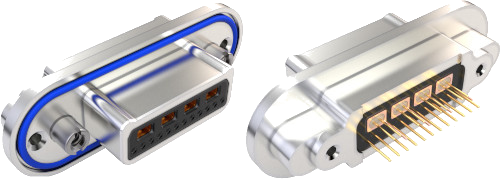

	794-009 VersaLink Straight PCB Rear-Panel Mount, Socket Contact Plug Rear Panel Mount Flange O Ring or EMI Spring

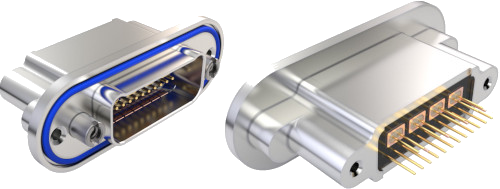

	794-010 VersaLink Straight PCB Rear-Panel Mount, Pin Contact Receptacle Rear Panel Mount Flange O Ring or EMI Spring

Other Connectors and Accessories

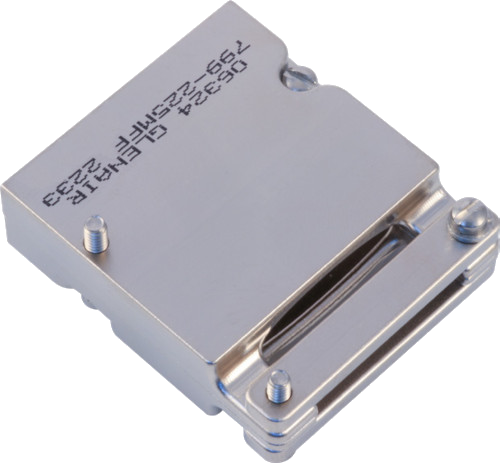

Clamshell Strain Relief for Series 794 Connectors, 799-225
