Hermetic Connectors, Glass-to-Metal, and CODE RED Encapsulant-to Metal Sealing – SuperNine® Advanced Performance MIL-DTL-38999 Series III Type

Box, Wall, and Solder Mount Glass-Seal Hermetics for High-Pressure/Low-Leak Applications — Plus Special Crimp Contact and Lightweight CODE RED Hermetic Solutions all IAW MIL-DTL-38999 Series III

Available sealing (helium leak rate) from <1×10^-7 cc/sec to 1×10^-10
No material breakdown or aging over time
Matched and compression seal glass-to-metal technologies
Pressure resistance to 32,000+ PSI
Available CODE RED lightweight aluminum hermetics with low-resistance copper contacts
DSCC qualified MIL-DTL-38999 Series III glass-sealed hermetics in both pin and socket configurations

Reference

Related Catalog

MIL-DTL-38999 QPL and Glenair Commercial Hermetic Connectors

On this page...

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors
SuperNine Lightweight Hermetic Connectors with CODE RED Encapsulant

SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors

	233-265 Hermetic Wall Mount Receptacles with Removable Crimp Contacts SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors H2 Wall Mount with Accessory Threads BH7 Wall Mount with Integral Banding Porch DH7 Dual O-Ring Wall Mount with Accessory Threads DBH7 Dual O-Ring Wall Mount with Integral Banding Porch
	233-265 Hermetic Jam-Nut Mount Receptacles with Removable Crimp Contacts SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors H7 Jam-Nut with Accessory Threads BH7 Jam-Nut with Integral Banding Porch DH7 Dual O-Ring Jam-Nut Mount with Accessory Threads DBH7 Dual O-Ring Jam-Nut Mount with Integral Banding Porch 233-265-H2 Wall Mount Receptacles
	233-266 Hermetic Jam-Nut and Box Mount Receptacles with Accessory Thread or Banding Porch SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors 233-266-H7 and 233-266-07 Receptacle with Accessory Thread or Banding Porch H7 = Jam-Nut Mount with Accessory Thread 07 = Jam-Nut Mount with Single Band, Banding Porch 233-266-DH7 and 233-266-D07 Jam-Nut Mount with Accessory Thread or Banding Porch DH7 = Jam-nut Mount with Accessory Thread D07 = Jam-nut Mount Single Band 233-266-H2 and 233-266-02 Box Mount with Accessory Thread or Banding Porch H2 = Box Mount with Accessory Threads 02 = Box Mount with Band Porch
	2333-2001 1000 PSI Rated, Piston Sealed Receptacle SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors 2333-2001-H2 Piston Sealed Box Mount Receptacle 2333-2001-H5 Piston Sealed Solder Mount Receptacle 2333-2001-H7 Piston Sealed Jam-Nut Mount Receptacle 2333-2001-H8 Piston Sealed Weld Mount Receptacle
	2333-2003 Cryogenic Hermetic Receptacle SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors H2 – Box Mount Receptacle H5 – Solder Mount Receptacle H7 – Jam-Nut Mount Receptacle H8 – Weld Mount Receptacle
	2333-2010 Cryogenic Hermetic Feedthrough SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors H2 – Box Mount Receptacle H7 – Jam-Nut Mount Receptacle DH7- Dual O-Ring Jam-Nut Mount Receptacle H8 – Weld Mount Receptacle
	233-277 Hermetic 1000 PSI Rated Piston Seal Solder Cup Receptacle SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors 233-277-H7 or -BH7 Jam-Nut Receptacle with Accessory Threads or Banding Porch
	233-278 Hermetic 1000 PSI Rated Piston Seal Crimp Removable Receptacle SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors 233-278-H7 or -BH7 Jam-Nut Receptacle with Accessory Threads or Banding Porch
	233-263 Hermetic Bulkhead Feed-Thru with 10G High-Speed Contacts SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors H2 - Square Flange Mount Bulkhead Feed-Thru H8 - Weld Mount Bulkhead Feed-Thru H7 - Jam-Nut Mount Bulkhead Feed-Thru
	233-262 Hermetic PC Tail Receptacles with Shielded Contacts SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors 233-262 High-Speed / RF Shielded Contact, PCB Footprints 233-262-H2 Box Mount Receptacle 233-262-H7 Jam-Nut Mount Receptacle 233-262-DH7 Jam-Nut Mount Dual O-Ring Receptacle 233-262-H8 Weld Mount Receptacle, D38999/21 Type
	233-267 Hermetic PC Tail Receptacles with Threaded Stand-Off SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors 233-267-H2 Box Mount Receptacle 233-267-H7 Jam-Nut Receptacle 233-267-DH7 Dual O-Ring Jam-Nut Receptacle
	233-268 Hermetic Dual Flange Receptacles, High-Speed PCB Contacts SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors 233-268-H2 Box Mount Receptacle 233-268-H7 and 233-268-DH7 Jam-Nut Mount Receptacle 233-268-H7 Jam-Nut Mount Receptacle 233-268-DH7 Dual O-Ring, Jam-Nut Mount Receptacle
	233-271 Hermetic Receptacle with Thermocouple Contacts SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors 233-271-H2 Flange Mount Receptacle Connector 233-271-H5 Solder Mount Receptacle Connector 233-271-H7 Jam-Nut Mount Receptacle Connector 233-271-H8 Weld Mount Receptacle Connector
	233-103-H2 and 233-103-H8 Hermetic Bulkhead Feed-Thrus SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors 233-103-H2 Box Mount Receptacle 233-103-H8 Weld Mount Receptacle
	233-103-H7 and 233-103-DH7 Hermetic Bulkhead Feed-Thrus SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors 233-103-H7 Jam-Nut Mount 233-103-DH7 Dual O-Ring Jam-Nut Receptacle
	233-261-H2 and 233-261-H8 Hermetic Bulkhead Feed-Thru with Shielded Contacts SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors 233-261-H2 Box Mount Feed-Thru Connector 233-261-H8 Weld Mount Feed-Thru Connector
	233-261-H7 and 233-261-DH7 Hermetic Bulkhead Feed-Thru with Shielded Contacts SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors 233-261-H7 Jam-Nut Mount Feed-Thru Connector 233-261-DH7 Dual O-Ring Jam-Nut Mount Feed-Thru Connector
	233-284 Hermetic Bulkhead Feed-Thru with Thermocouple Contacts SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors 233-284-H2 Dual O-Ring, Jam-Nut Feed-Thru Connector 233-284-H7 Jam-Nut Feed-Thru Connector 233-284-DH7 Dual O-Ring, Jam-Nut Feed-Thru Connector 233-284-H8 Weld Mount Feed-Thru Connector
	233-103-H9 Hermetic Bulkhead SAV-CON Feed-Thru SuperNine MIL-DTL-38999 Series III Type Glass-Seal Hermetic Connectors 233-103-H9 Jam-Nut Mount Gender Changer

SuperNine Lightweight Hermetic Connectors with CODE RED Encapsulant

"Mission-Critical" Hermetic Sealing with 1x10^-7 Leak-Rate Performance

Hermetically-sealed interconnects used in vacuum or high-altitude applications prevent moisture and other contaminants from damaging sensitive electronic equipment. Glass-to-metal hermetic sealing has been the gold standard in the aerospace and petrochemical industries for decades due to the strength and long-term durability of the materials used. But glass-to-metal seal hermetics come with a big price tag in both weight and electrical resistance.

CODE RED is an innovative sealing encapsulant and application process — invented by Glenair — that provides durable hermetic sealing in a lightweight aluminum package. CODE RED allows for the use of conventional gold-plated copper alloy contacts, significantly improving electrical performance. CODE RED hermetic connectors are available now in Glenair SuperNine® (D38999 Series III type), Series 80 Mighty Mouse, and M24308 D-Sub. These connectors deliver reliable, life-of-system 1x10^-7 max leak-rate hermetic sealing and special non-magnetic (zero residual magnetism) versions are also available, consult factory.

Reference

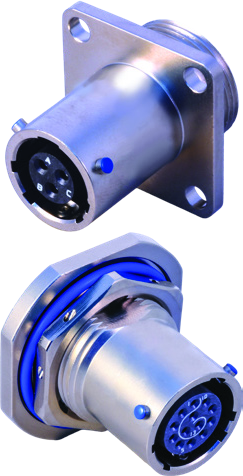

	233-250 Wall Mount or Jam-Nut Mount Receptacle, PC Tails or Solder Cup MIL-DTL-38999 Series III Type Lightweight Hermetic Connectors
	233-251 Hermetic Jam-Nut Mount, Bulkhead Feed-Thru MIL-DTL-38999 Series III Type Lightweight Hermetic Connectors
	233-252 Hermetic Jam-Nut Mount, Crimp Removable Contact MIL-DTL-38999 Series III Type Lightweight Hermetic Connectors
	233-253 Hermetic Jam-Nut Mount with Solder Cup and Banding Porch MIL-DTL-38999 Series III Type Lightweight Hermetic Connectors
	233-254 Hermetic Jam-Nut Mount with PC Tail Quadrax Contacts MIL-DTL-38999 Series III Type Lightweight Hermetic Connectors
	233-255 Hermetic Jam-Nut Mount, PC Tail with Threaded Standoffs MIL-DTL-38999 Series III Type Lightweight Hermetic Connectors

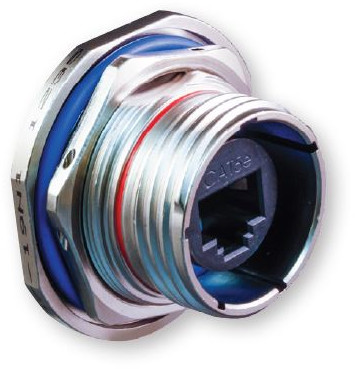

	2330-0131 Connector Receptacle, RJ45 to Solder Cup Termination MIL-DTL-38999 Series III Type Lightweight Hermetic Connectors 2330-0131-00 Wall Mount Receptacle with Slotted Holes 2330-0131-D0 Wall Mount Receptacle with Round Holes 2330-0131-07 Jam Nut Mount Receptacle RJ45 Orientation Options

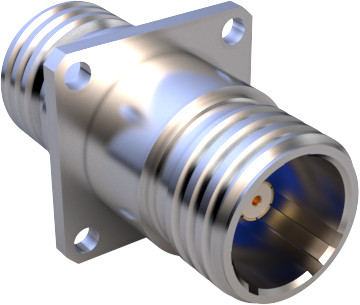

	2333-2002 Light Weight Hermetic Bulkhead Feedthru Connector with BMB RF Contacts MIL-DTL-38999 Series III Type Lightweight Hermetic Connectors 2333-2002-07 Jam-nut Mount Receptacle 2333-2002-D0 Wall Mount with Round Holes
	233-256 Jam-Nut Mount Receptacle MIL-DTL-38999 Series III Type Lightweight Hermetic Connectors
