El Ochito® Red
El Ochito® Red provides 100 Ohm differential impedance for HDMI 2.0, DisplayPort 1.2, SATA, and general high speed up to 10 Gbps. Ideal for video applications in hostile environments with temperature extremes, vibration, electromagnetic interference, as well as moisture exposure. Designed for use with high performance aerospace grade cable. Available with secure threaded coupling or push-pull QDC mating.
- Quick Disconnect for HDMI and DisplayPort
- Quick Disconnect for Multi-Gig SATA and General High Speed
- Threaded Coupling, Multi-Gig 100 Ohm for SATA and General High Speed
- HDMI, DP, SATA and General High Speed Cables
Quick Disconnect for HDMI and DisplayPort

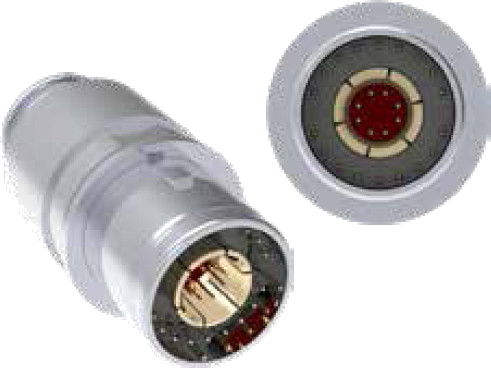

882-019
Cable Plug. Integral banding porch backshell. Supplied as unassembled kit for termination to HDMI/DP cable. Mates with 882-020 and 882-022.

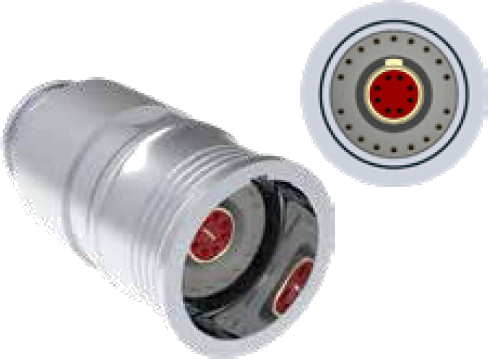

882-020
Cable Receptacle. Integral banding porch. Supplied as unassembled kit for termination to HDMI/DP cable. Mates with 882-019 and 882-021.

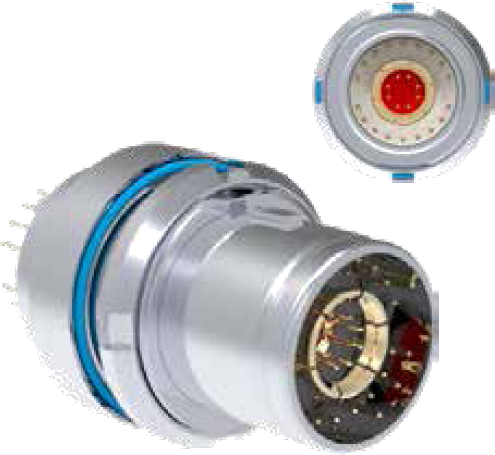

882-021
PCB Plug. Rear panel mount, jam-nut plug with O-ring seals and epoxy potting for watertight sealing. Mates to 882-020 & 882-022.

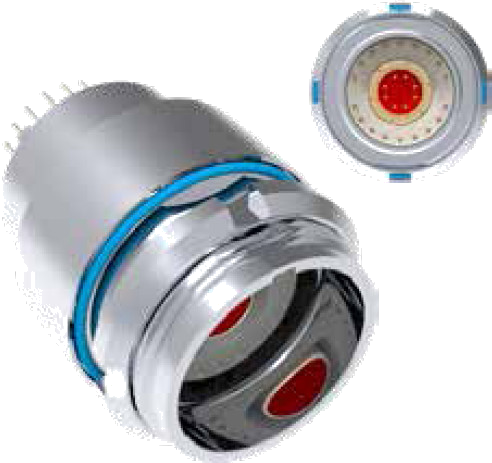

882-022
PCB Receptacle. Rear panel mount, jam-nut receptacle with O-ring seals and epoxy potting for watertight sealing. Mates to 882-019 & 882-021.

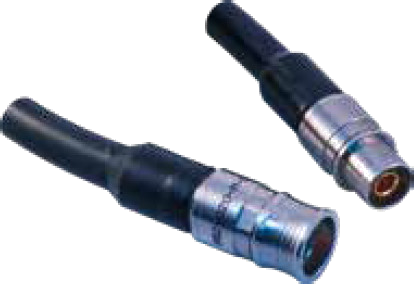

8573-0029
Cordset, Single-ended. HDMI / DisplayPort cordset with aerospace-grade cable. Superfly connector on one end, opposite end is unterminated.

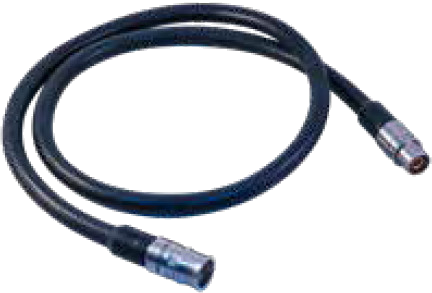

8573-0030
Cordset, Double-ended. HDMI / DisplayPort cordset with aerospace-grade cable. SuperFly plug-to-receptacle cordset.
8573-0031
HDMI Cordset, Double-ended. HDMI cordset with commercial-grade HDMI cable. SuperFly connector to HDMI plug.

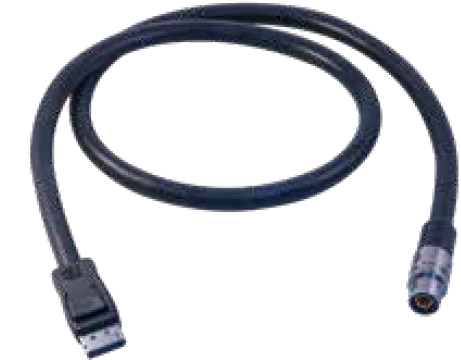

8573-0032
DisplayPort Cordset, Double-ended. DisplayPort cordset with commercial-grade cable. SuperFly connector to DisplayPort plug.

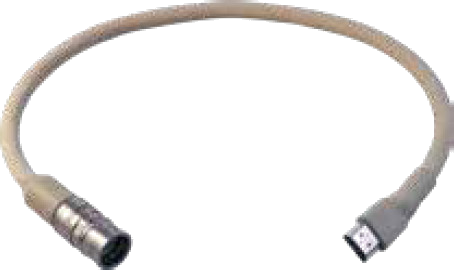

8573-0033
HDMI 2.0 Cordset, Double-ended. HDMI 2.0 cordset with aerospace-grade cable. SuperFly connector to HDMI plug.
Quick Disconnect for Multi-Gig SATA and General High Speed
882-023
Cable Plug. Multi-gig, 100 Ohm choose Integral band platform or cable grommet backshell. Supplied as unassembled kit. Mates with 882-024, 027, -030, -040.

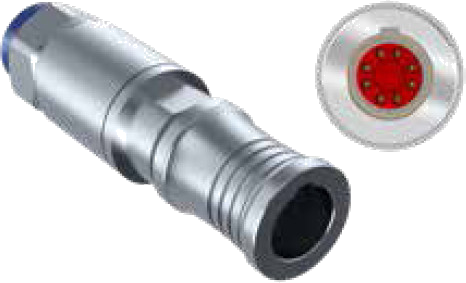

882-024
Cable Receptacle. Multi-gig, 100 Ohm choose Integral band platform or cable grommet backshell. Supplied as unassembled kit. Mates with 882-023, -031, -034, -037.
882-037
Panel Mount Plug. Multi-gig, 100 Ohm integral backshell and cable grommet. Supplied as unassembled kit. Mates with 882-011, -024, -027, -030, and -040.

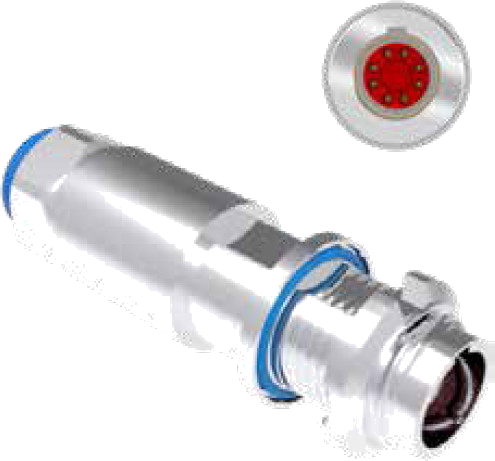

882-040
Panel Mount Receptacle. Multi-gig, 100 Ohm choose Integral band platform or cable grommet backshell. Supplied as unassembled kit. Mates with 882-023, -031, -034, -037.

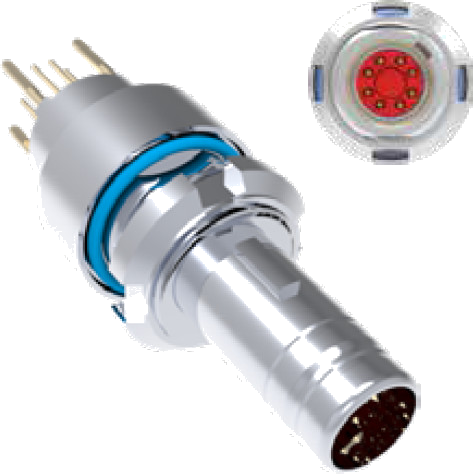

882-031
PCB Plug. Multi-gig, 100 ohm, rear panel mount, jam-nut receptacle. O-ring seals and epoxy potting for watertight sealing. Mates with 882-024, -027, -030, -040.

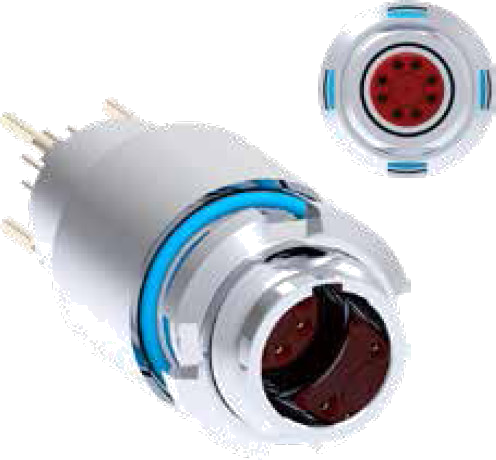

882-027
PCB Receptacle. Multi-gig, 100 Ohm PCB, rear panel mount, jam-nut receptacle. O-ring seals and epoxy potting for watertight sealing. Mates with 882-023, -031, -034, -037.
882-030
90° PCB Receptacle. Multi-gig, 100 Ohm rear panel mount, jam-nut receptacle. O-ring seals and epoxy potting for watertight sealing. Mates with 882-023, -031, -034, -037.

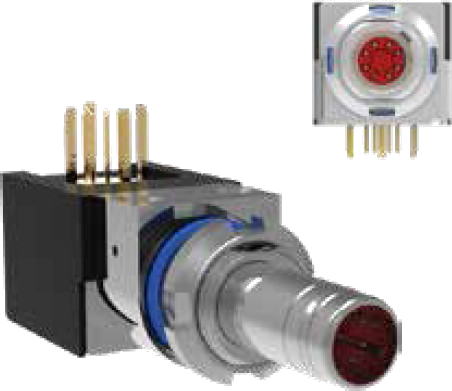

882-034
90° PCB Plug. Multi-gig, 100 Ohm PCB 90° rear panel mount, jam-nut plug. O-ring seals and epoxy potting for watertight sealing. Mates with 882-024, -027, -030, -040.

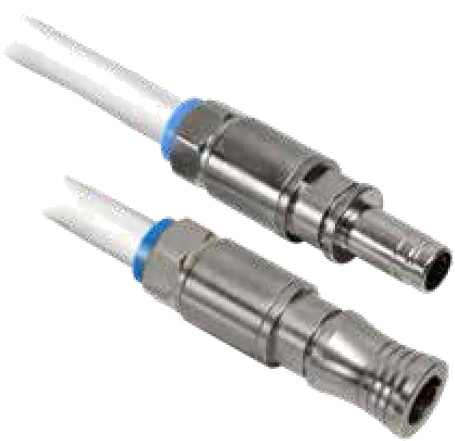

8573-0025
Cordset, Single-ended. Multi-gig, 100 Ohm pre-wired single-ended, SuperFly QDC plug or receptacle, opposite end is unterminated.
8573-0026
Cordset, Double-ended. Multi-gig, 100 Ohm cordset with SuperFly QDC plug on one end and receptacle connector on opposite end.
8573-0038
SATA 3.0 Cordset, Single-ended. 100 Ohm cordset with SuperFly connectors on one end, opposite end is unterminated.

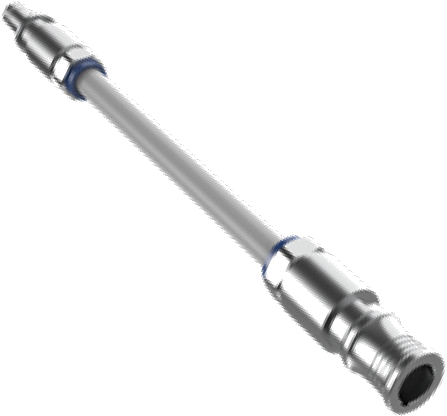

8573-0039
SATA 3.0 Cordset, Double-ended. 100 Ohm cordset with SuperFly connectors, plug to receptacle.
Threaded Coupling, Multi-Gig 100 Ohm for SATA and General High Speed

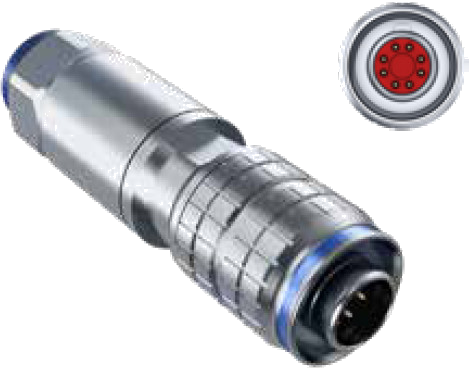

882-025
Cable Plug. Choose integral band porch or cable grommet backshell. Kit supplied unassembled. Mates with 882-026, -028, -029 and -043.

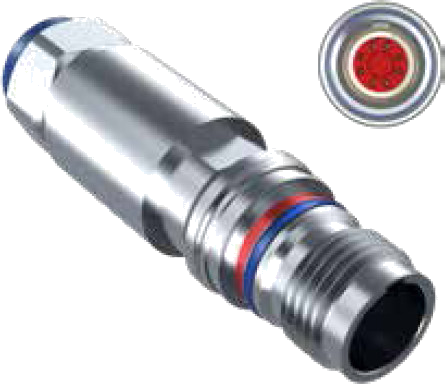

882-026
Cable Receptacle. Choose integral band porch or cable grommet backshell. Kit supplied unassembled. Mates with 882-025.
882-043
Panel Mount Receptacle. Choose integral band porch or cable grommet backshell. Kit supplied unassembled. Mates with 882-025.

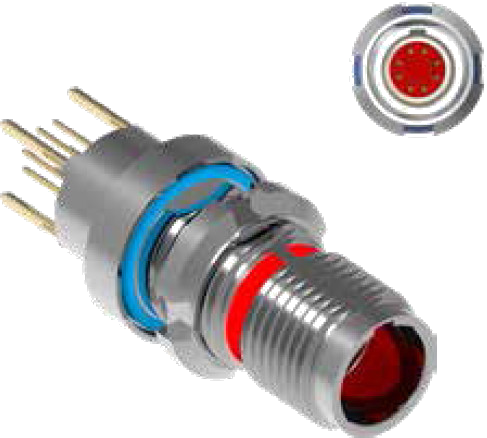

882-028
PCB Receptacle. 100 ohm, rear panel mount, jam-nut receptacle. O-ring seals and epoxy potting for watertight sealing. Mates with 882-025.

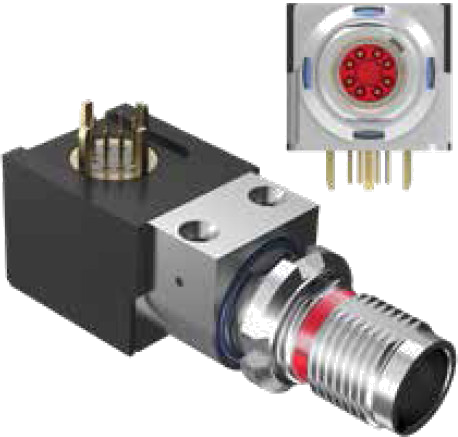

882-029
90° PCB Receptacle. 100 ohm, 90° rear panel mount, jam-nut receptacle. O-ring seals and epoxy potting for watertight sealing. Mates with 882-025.

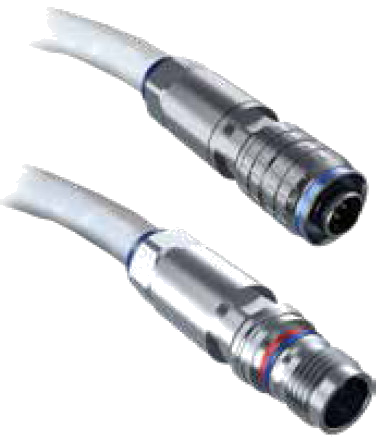

8573-0027
Cordset, Single-ended. Multi-gig, pre-wired single-ended cordset with cable grommet backshell. Four aerospace-grade cable options available.

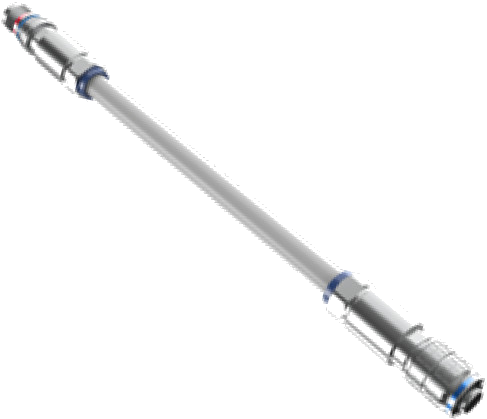

8573-0028
Cordset, Double-ended. Multi-gig pre-wired plug-to-receptacle cordset with cable grommet backshell. Four aerospace-grade cable options available.
8573-0040
SATA 3.0 Cordset, Single-ended. Pre-wired single-ended cordset SuperFly QDC plug or receptacle, opposite end is unterminated.
HDMI, DP, SATA and General High Speed Cables
963-120-1
963-120-2
963-120-3
963-127-1
963-127-2
963-127-3
963-120: Aerospace Grade 26 AWG S/FTP High-Speed Cable. Available in Duralectric Lite, Polyurethane LSZH, and FEP Jacket. Meets HDMI 2.0 and DisplayPort 1.2 up to 5 m. 963-127: 26 AWG S/FTP HDMI and DisplayPort Cable in same jacket options.
963-122-1
963-122-2
963-122-3
963-033-26
963-122: Aerospace Grade 26 AWG S/FTP High-Speed Cable. Available in Duralectric Lite, Polyurethane LSZH, and FEP Jacket. 963-033-26: S/FTP Cat 6A Cable by Gore, meets ANSI/TIA 568-C.2 Cat 6A up to 65 m, SAE AS6070/5 and /6.
963-133
SATA Cable. 24 AWG Shielded Parallel Pair Cable. 100 ohm, shielded parallel pair with individual foil shield around both data pairs plus drain wire. FEP blue wall jacket, PTFE over ePTFE dielectric.
