VersaLink™ "Zero-Crosstalk" Twinax Connectors and Cables

VersaLink™

Innovative differential twinax crimp contacts with highest available bandwidth — up to 28Gbps each — in rugged mil-aero circular and rectangular connector packaging. Hybrid insert arrangements support both standard signal as well as high-speed differential data.

High-speed serial data protocols (USB 3.1 Gen2, USB-C, SATA, PCIe, DisplayPort, and HDMI) all have transmission rates in the 10Gb/s+ range for each data pair. In order to provide truly high-speed signal integrity for these bandwidth-dependent protocols, Glenair has invented a new contact technology called VersaLink™ which delivers outstanding impedance matching and cross-talk isolation at both the cable-to-connector interface, as well as between connector and board. VersaLink is a highly-engineered differential Twinax contact module that may be packaged in a wide range of both circular and rectangular connector formats such as the MIL-DTL-83513 Micro-D. This high-density package solution provides mating reliability, ruggedness, signal integrity, and deployment simplicity.

  • VersaLink: shielded differential Twinax interconnect solution
  • Signature Glenair design intermountable in standard Micro-D footprints
  • Higher speed and density than mil-spec style Twinax solutions
  • Individually shielded pairs result in virtually zero cross talk
  • Hybrid arrangements with VersaLink contact modules and standard Micro-D inserts for signal and power

Data-intensive servers, computers and peripheral devices in mission-critical applications require a new generation of shielded contact technology and tried-and-true connector package performance. Both are exquisitely realized in the VersaLink Micro-D.

Related Glenair Content

VersaLink™ Application Notes and Test Reports

Pin Contact Assembly Instructions

Socket Contact Assembly Instructions

VersaLink™

VersaLink™ "Zero-Crosstalk" Twinax Connectors and Cables

Innovative differential twinax crimp contacts with highest available bandwidth — up to 28Gbps each — in rugged mil-aero circular and rectangular connector packaging. Hybrid insert arrangements support both standard signal as well as high-speed differential data.

  • eBook
  • PDF (Single pages, print friendly)

On this page...

VersaLink Contact Technology

VersaLink Twinax contact technology supports high-speed serial data protocols including 100 Gigabit Ethernet, USB4, SATA, PCIe, DisplayPort, and HDMI. Crimp-contact twinax modules are sold separately for ready packaging in Glenair signature circular and rectangular connectors.

Reference

VersaLink Pin Contact Assembly, 853-045

853-045
VersaLink Pin Contact Assembly

VersaLink Socket Contact Assembly, 853-046

853-046
VersaLink Socket Contact Assembly

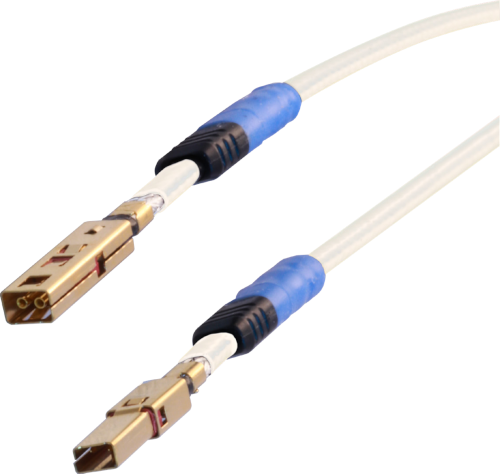

VersaLink Pin/Socket Cable Assemblies, 8574-0001

8574-0001
VersaLink Pin/Socket Cable Assemblies

Save assembly time and cost with pre-wired, 100% tested VersaLin­k™ assemblies. Cables have VersaLink contacts terminated at one or both ends of aerospace-grade shielded cable. Supplied with cable grommet follower if applicable. Compatible with Glenair Series 794, Series 816, and Series 806 connectors. VersaLink contacts may only be installed in connectors with VersaLink insert arrangements.

SpeedLine 100 Ohm High-Speed Protocol Cables

963-068-26
963-069-26
SpeedLine 100 Ohm High-Speed Protocol Cables

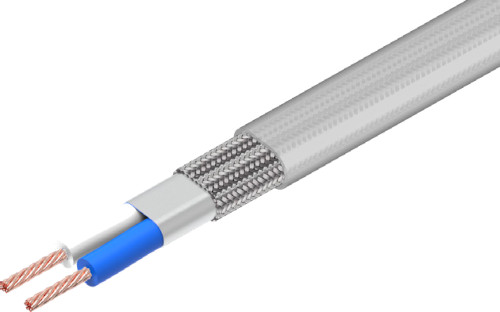

  • 963-068-26
    26 AWG - Twister Pair
  • 963-069-26
    26 AWG - Parallel Pair
VersaLink Grommet Follower, 859-207

859-207
VersaLink Grommet Follower

Optional grommet follower is recommended. Slide boot onto wire before terminating contact. After contact is installed in connector, slide grommet follower forward into connector grommet to seal the contact cavity.

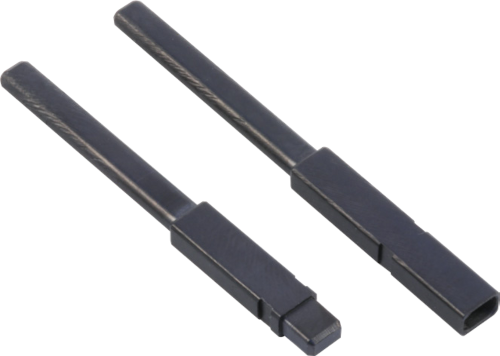

VersaLink Pin or Socket Dummy Contact Sealing Plug, 859-224

859-224
VersaLink Pin or Socket Dummy Contact Sealing Plug

Conventional sealing plugs, combined with the connector grommet seal, provide reliable dust and moisture ingress protection. But common contact sealing plugs still require that a properly-sized electrical contact be first inserted into the cavity, followed by the plastic plug. Glenair innovative Dummy Contact Sealing Plugs (DCSP) eliminate the need to use expensive electrical contacts as part of the sealing regimen. Fast and easy-to-install, these longer form-factor Dummy Contact Sealing Plugs (DCSP) are a one-piece solution to contact cavity sealing that results in significant weight reduction, material cost reduction, and assembly labor. Grommet follower 859-207-2 required to seal rear of cavity.

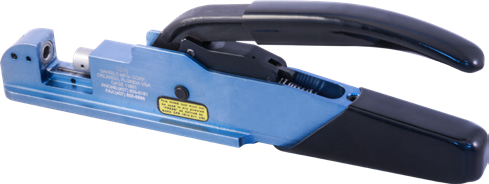

VersaLink Inner Contact Crimp Tool, 809-464 and 859-205

809-464
859-205
VersaLink Inner Contact Crimp Tool

  • 809-464
    Contact Crimp Tool
  • 859-205
    Contact Crimp Die
VersaLink Shield Crimp Tool, 809-465 and 859-206

809-465
859-206

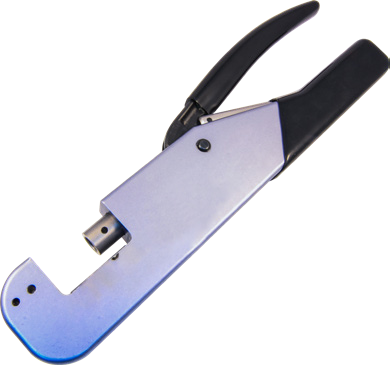

VersaLink Shield Crimp Tool

  • 809-465
    Shield Crimp Tool
  • 859-206
    Shield Crimp Die

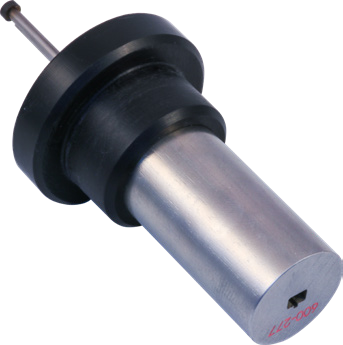

VersaLink Contact Assembly Tool, 600-277

600-277
VersaLink Contact Assembly Tool

  • Socket Assembly Tool
  • Pin Assembly Tool

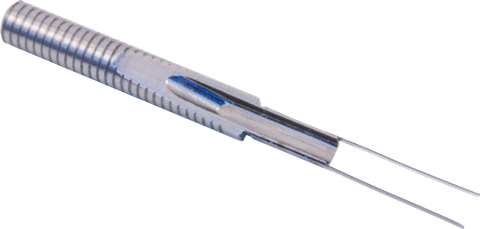

VersaLink Contact Removal Tool, 859-158

859-158
VersaLink Contact Removal Tool

Series 806 VersaLink Connectors

Glenair Signature Series 806 Mil-Aero connectors with VersaLink contacts feature advanced electrical, mechanical, and environmental performance plus reduced size and weight compared to D38999. Rapid-advance ratcheted coupling optimizes fast and reliable mating and demating.

Reference

VersaLink™ Circular Backshell Selection Guide

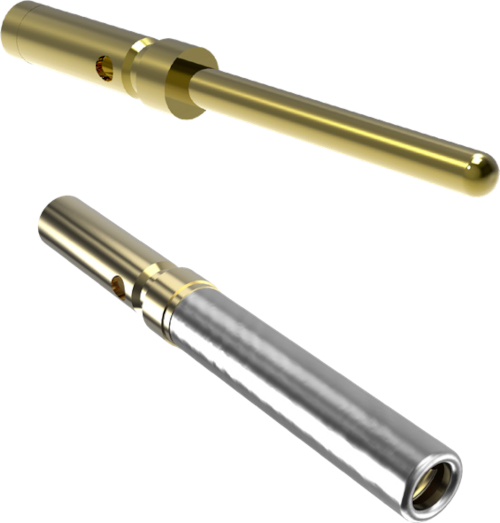

Size 22HD Signal Contacts for Series 806 VersaLink Hybrid Arrangements

Size 22HD Signal Contacts for Series 806 VersaLink Hybrid Arrangements

High-density size #22HD contacts accept #22 to #30 AWG wire. Compatible with Series 806 connectors with size 22HD contact cavities. Crimp termination. Contacts are bulk packaged.

  • Military grade
  • Heavy gold plating

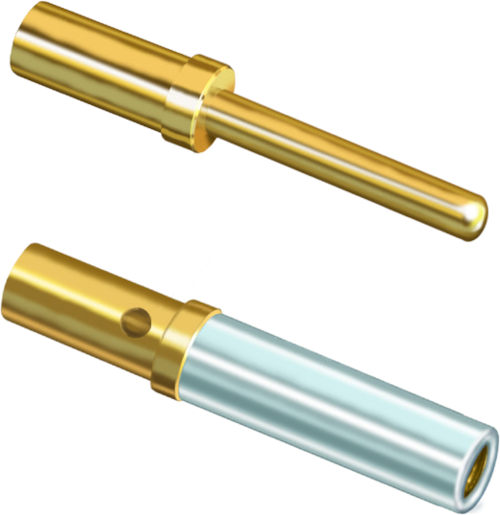

Size 20HD Power Contacts for Series 806 VersaLink Hybrid Arrangements

Size 20HD Power Contacts for Series 806 VersaLink Hybrid Arrangements

High-density size #20HD contacts accept #20 to #24 AWG wire. Compatible with Series 806 connectors with size 20HD contact cavities. Crimp termination. Bulk packaged.

  • Military grade
  • Heavy gold plating
VersaLink Plug, 806-044

806-044
VersaLink Plug

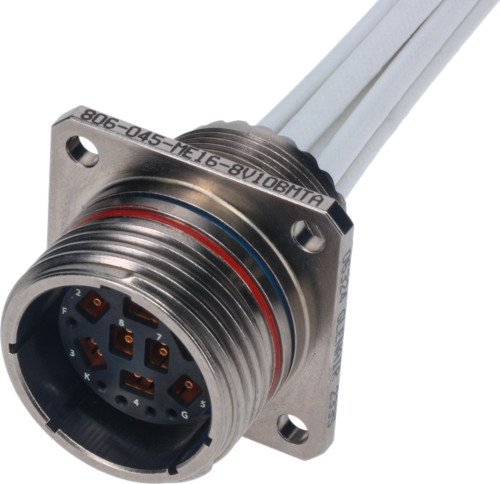

VersaLink Square Flange Receptacle, 806-045

806-045
VersaLink Square Flange Receptacle

VersaLink Jam-Nut Receptacle, 806-046

806-046
VersaLink Jam-Nut Receptacle

VersaLink In-Line Receptacle, 806-047

806-047
VersaLink In-Line Receptacle

VersaLink PCB Square Flange Receptacle, 806-048

806-048
VersaLink PCB Square Flange Receptacle

VersaLink PCB Jam-Nut Receptacle, 806-049

806-049
VersaLink PCB Jam-Nut Receptacle

Strain Relief Cable Clamp Backshell, High-Speed Contacts, 620VS090

620VS090
Strain Relief Cable Clamp Backshell, High-Speed Contacts

Extended frame saddle clamp fits Series 806 Mil-Aero connectors. Clamp has enlarged inside diameter and longer frame to provide clearance for high-speed contacts with sealing boots. Extra clearance helps prevent contact splay and damage. Full radius saddle bars have self-locking SST clinch nuts. Anti-decoupling mechanism provides audible detented coupling and prevents backoff under high vibration.

  • Self-locking
  • Full radius saddles
  • Extra clearance for #8 sealing boots

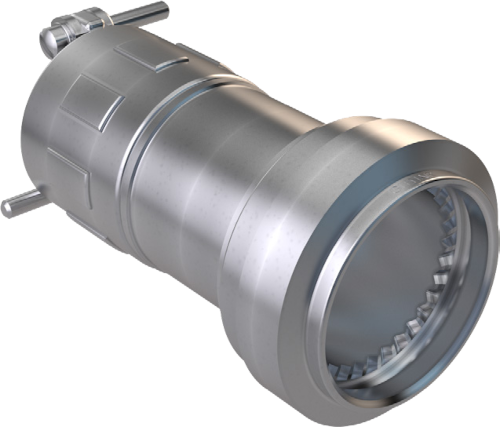

Banding Backshell, Shrouded, 440V#1130

440V#1130
Banding Backshell, Shrouded

Threaded coupling adapter with anti-decoupling ratchet prevents loosening under vibration. Accommodates Series 806 connectors with high-speed contacts and cable sealing boots. Aluminum or stainless steel.

  • Band-In-A-Can

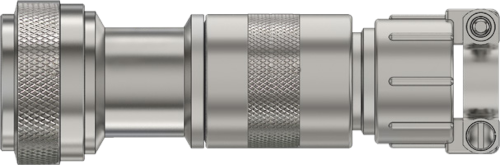

Banding Backshell, Shrouded, Expanded Clearance, 443V*042

443V*042
Banding Backshell, Shrouded, Expanded Clearance

"Band-in-a-Can" shield termination. Saddle clamp. 443V*042 banding backshell fits Glenair Series 806 Mil-Aero VersaLink connectors. Backshell has increased clearance for sealing boots used with VersaLink contacts. Anti-decoupling mechanism provides audible detented coupling and prevents backoff under high vibration. Terminate cable braid shield with band strap (optional). Environmentally sealed with O-rings. Aluminum or stainless steel. Saddle clamp hardware is passivated SST. Silicone O-rings and grommet. Aluminum version has thermoplastic detent spring, stainless steel version has stainless steel detent spring.

  • Prevents splaying of VersaLink contacts
  • Environmental

Series 794 VersaLink Connectors

The 794 rectangular series is designed for avionics and other high-data rate aerospace applications that require optimal contact and connector density. Dual-lobe scoop-proof shells prevent mating damage and optional polarizing keys prevent mis-mating issues. Rugged environmental design with robust EMC performance, ideal for blind-mate applications.

Reference

Outgassing Modification Codes

Outgassing Modification Codes

Series 794 connectors are available with upgraded screening and vacuum bakeout for high-reliability space programs.

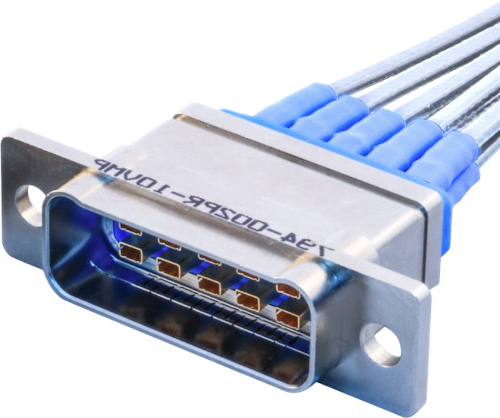

Cable Mount Plug with Socket Contacts, 794-001

794-001
Cable Mount Plug with Socket Contacts

Cable Mount Receptacle with Pin Contacts, 794-002

794-002
Cable Mount Receptacle with Pin Contacts

Rear Panel Mount, Socket Contact Plug, 794-003

794-003
Rear Panel Mount, Socket Contact Plug

Rear Panel Mount, Pin Contact Receptacle, 794-004

794-004
Rear Panel Mount, Pin Contact Receptacle

VersaLink Float Mount, Socket Contact Plug, 794-005

794-005
VersaLink Float Mount, Socket Contact Plug

VersaLink Float Mount, Pin Contact Receptacle, 794-006

794-006
VersaLink Float Mount, Pin Contact Receptacle

VersaLink Straight PCB Mount, Socket Contact Plug, 794-007

794-007
VersaLink Straight PCB Mount, Socket Contact Plug

VersaLink Straight PCB Mount, Pin Contact Receptacle, 794-008

794-008
VersaLink Straight PCB Mount, Pin Contact Receptacle

VersaLink Straight PCB Rear-Panel Mount, Socket Contact Plug, 794-009

794-009
VersaLink Straight PCB Rear-Panel Mount, Socket Contact Plug

VersaLink Straight PCB Rear-Panel Mount, Pin Contact Receptacle, 794-010

794-010
VersaLink Straight PCB Rear-Panel Mount, Pin Contact Receptacle

Clamshell Strain Relief for Series 794 Connectors, 799-225

799-225
Clamshell Strain Relief for Series 794 Connectors

Series 794 PCB Layouts, 799-196

799-196
Series 794 PCB Layouts

Micro-D VersaLink Connectors

Ultra miniature Micro-D connectors with High-Speed VersaLink contacts offer the industry’s highest speed and density compared to conventional mil-spec style twinax solutions. Hybrid arrangements with VersaLink contact modules and standard Micro-D contacts available for signal and power applications. Series is inter-mountable with standard Micro-D panel cutout dimensions.

Reference

Space-Grade Outgassing Modification Codes

Space-Grade Outgassing Modification Codes

High-Speed VersaLink connector is a high density, lightweight, high performance connector ideal for space flight applications. These connectors are available with NASA-grade screening and vacuum bakeout for high reliability space programs.

Wired Micro-D Connector with VersaLink Contacts, GHS4-M

GHS4-M
Wired Micro-D Connector with VersaLink Contacts

  • GHS4-M
    Wired VersaLink Micro-D
Straight PCB Connector, GVLM-BS

GVLM-BS
Straight PCB Connector

  • GVLM-1000
    GVLM-BS, Straight PCB Connector Footprints, VersaLink PCB Layout
Right-Angle PCB Connectors, GVLM-BR

GVLM-BR
Right-Angle PCB Connectors

  • GVLM-1001
    GVLM-BR PCB VersaLink Right-Angle Connector PCB Footprints
Pre-Wired Rear Panel Mount Connector, GHS4-RPM

GHS4-RPM
Pre-Wired Rear Panel Mount Connector

  • GHS4-RPM
    Pre-Wired VersaLink Micro-D
Rear Panel Mount, Straight PCB Connectors, GVLRPM-BS

GVLRPM-BS
Rear Panel Mount, Straight PCB Connectors

  • GVLM-1000
    GVLRPM-BS, Rear Panel Mount, Straight PCB Connector Footprints
Rear Panel Mount, Right Angle PCB Connectors, GVLRPM-BR

GVLRPM-BR
Rear Panel Mount, Right Angle PCB Connectors

  • GVLM-1002
    GVLRPM-BR, Rear Panel Mount, Right Angle PCB Connector Footprints
Pre-Wired, Double or Single Ended Ground-Isolated Connector, GHS4-MS

GHS4-MS
Pre-Wired, Double or Single Ended Ground-Isolated Connector

  • GHS4-MS
    Ground Isolated Micro-D
Board Mount Straight, Ground Isolated Connectors, GVLMS-BS

GVLMS-BS
Board Mount Straight, Ground Isolated Connectors

  • GVLM-1004
    GVLMS-BS, Board Mount Straight, Ground-Isolated Connector PCB Footprints
Code-Red Light Weight Hermetic Bulkhead Feedthru, GVLM-1007

GVLM-1007
Code-Red Light Weight Hermetic Bulkhead Feedthru

  • GVLM-1007
    VersaLink Micro-D Hermetic Bulkhead Feedthru
Sav-Con for Common-Ground Design Layouts, GVLM-USP1

GVLM-USP1
Sav-Con for Common-Ground Design Layouts

  • GVLM2L
    VersaLink Micro-D, Nickel Plating, LCP Insulato
Shorting Plug for Common-Ground Design Layouts, GVLM-SP

GVLM-SP
Shorting Plug for Common-Ground Design Layouts

  • GVLM
    VersaLink Micro-D
Micro-D Protective Covers for Common-Ground Design Layouts, 500-154

500-154
Micro-D Protective Covers for Common-Ground Design Layouts

  • 500-154
    Dust Covers for Glenair High-Speed Micro-D Plug or Receptacle
VersaLink Jackpost Kits, 179-266 • 179-269 • 179-295

179-266 179-269 179-295
VersaLink Jackpost Kits

  • 179-266
    Versalink Rear Panel Mount Blind Hole Jackpost Kit
  • 179-269
    Versalink Rear Panel Mount Jackpost Kit
  • 179-295
    Versalink Jackpost Kit

VersaLink Bridge Board Level Connectors

The Glenair VersaLink Bridge is a high-density, micro-form factor twinax connector / jumper assembly used to bridge the gap between point A and point B on the board with better signal integrity than native board traces. VersaLink Bridge is equally capable at reducing insertion loss and signal latency for data traffic between an ASIC or FPGA and the I/O.

Reference

VersaLink Bridge Cable Assembly, GHS4-853-0001

GHS4-853-0001
VersaLink Bridge Cable Assembly

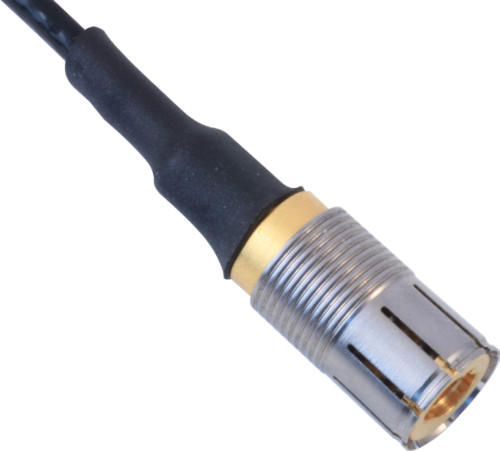

Quick Disconnect, Socket Plug, 853-051

853-051
Quick Disconnect, Socket Plug

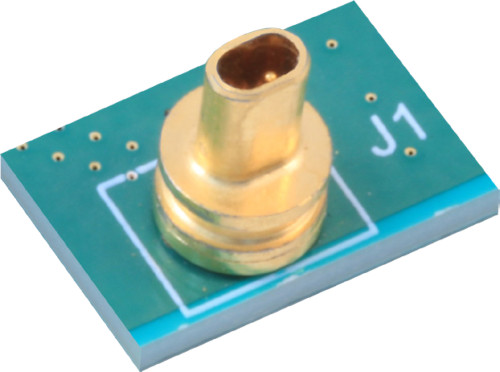

Quick Disconnect, Straight Board, Pin Jack, 853-052

853-052
Quick Disconnect, Straight Board, Pin Jack

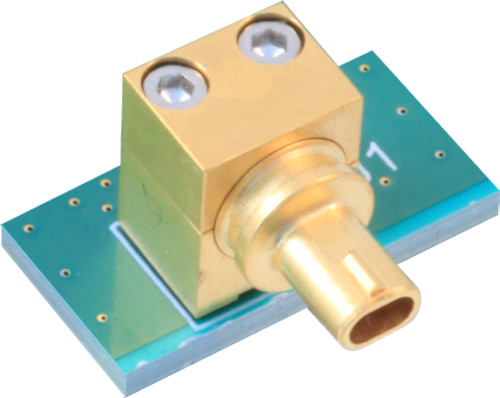

Quick Disconnect, Right Angle, Pin Board Level Jack, 853-054

853-054
Quick Disconnect, Right Angle, Pin Board Level Jack

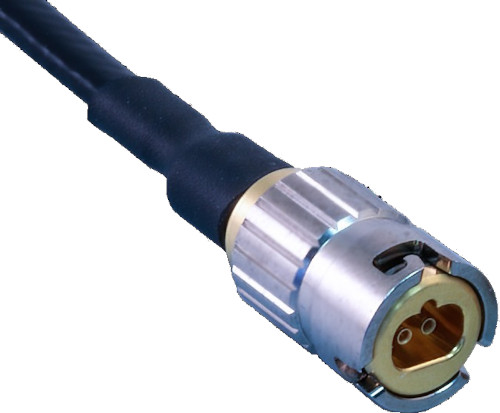

Bayonet, Socket Plug, 853-064

853-064
Bayonet, Socket Plug

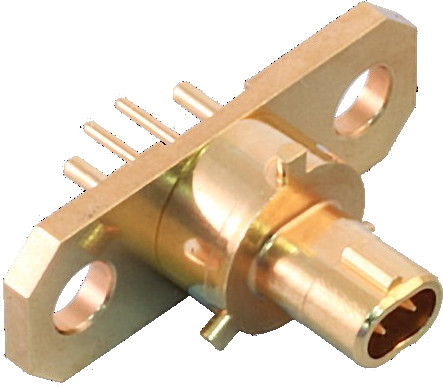

Bayonet, Straight PCB Mount, Pin Contact Jack, 853-065

853-065
Bayonet, Straight PCB Mount, Pin Contact Jack

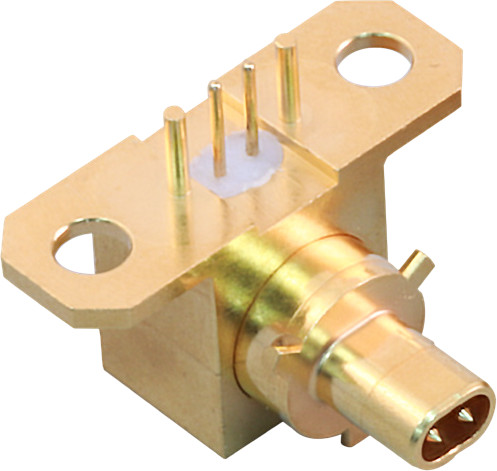

Bayonet, Right Angle PCB Mount, Pin Contact Jack, 853-067
