AS39029 QPL Crimp Signal, RF Coax, Databus, and other Glenair Signature Contacts
Electrical connector contacts used in multi-pin military standard and commercial equivalent connectors (MIL-DTL-38999, MIL-DTL-24308 and others) are controlled by the MIL-DTL-39029 specification (now SAE AS39029) which regulates materials, dimensions, plating thicknesses, electrical properties and other key parameters. Contact types include crimp, coaxial, thermocouple, and wire-wrap variants all exactingly manufactured to strict M39029 requirements. Mil-standard connectors are typically supplied with loose contacts in both pin and socket configurations for a broad range of wire gauges.
Glenair brings a new perspective to the supply of high-performance Mil-Spec and commercial electrical contacts: High Availability! Whether you need a standard duty socket contact for a MIL-DTL-28840 connector or a short-run of shielded Quadrax, we have you covered with products that are always in stock — with no dollar or quantity minimums. We also supply many special-purpose and custom contact designs including pneumatic, high-voltage DC, thermocouple, and more.
Reference
SAE-AS39029 Crimp Contacts: Standard-Duty and Expanded-Performance Pin and Socket Crimp Contacts
Mil-Qualified and Glenair Commercial Pin and Socket Crimp Contacts
Glenair brings a new perspective to the supply of Mil-Spec crimp contacts: High Availability. Whether you need a standard duty socket for a MIL-DTL-28840 connector or an extended duty pin for MIL-DTL-38999 Series III we have got you covered with products that are always in stock — with no dollar or quantity minimums. In addition to the broadest selection and availability, Glenair also delivers outstanding interconnection compatibility. Glenair QPL SAE-AS39029 contacts are guaranteed to mate properly and perform at the upper limits of application and specification requirements.
Reference
850-318
M39029/121
High-Density, Expanded-Performance Electrical Socket Contact
Crimp Socket Contact for High Vibration, High Temperature in MIL-DTL-38999 Series III Connectors
850-319
M39029/122
High-Density, Expanded-Performance Electrical Pin Contact
Crimp Pin Contact for High Vibration, High Temperature in MIL-DTL-38999 Series III Connectors
850-001
M39029/56
Standard Duty Electrical Socket Contact
Standard Socket Crimp Contact for MIL-DTL-38999 Series I, III and IV Connectors

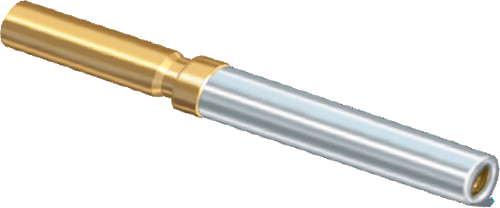

850-003
M39029/57
Standard Duty Electrical Socket Contact
Standard Socket Crimp Contact for MIL-DTL-38999 Series II Connectors

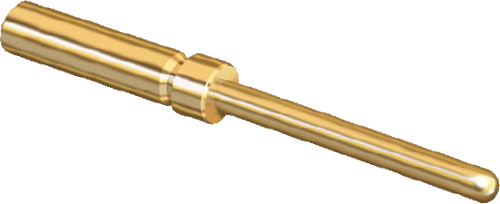

850-002
M39029/58
Standard Duty Electrical Pin Contact
Standard Pin Crimp Contact for MIL-DTL-38999 Series I, II, III and IV Connectors
850-021
M39029/63
Standard Duty Electrical Socket Contact
Standard Socket Crimp Contact for MIL-DTL-24308
850-004
M39029/83
Standard Duty Electrical Pin Contact
Standard Pin Crimp Contact for MIL-DTL-28840 Connectors
850-005
M39029/84
Standard Duty Electrical Socket Contact
Standard Socket Crimp Contact for MIL-DTL-28840 Connectors
850-006
M39029/106
Extended Duty Electrical Socket Contact
Extended Duty Socket Crimp Contact for MIL-DTL-38999 Series I, III and IV Connectors
850-007
M39029/107
Extended Duty Electrical Pin Contact
Extended Duty Pin Crimp Contact for MIL-DTL-38999 Series I, III and IV Connectors
8577-0001
Jumper Wire M22759 with M39029/56 and 58 Contacts
8577-0001M = MIL-SPEC M22759
8577-0001G: Made IAW M22759 (GS22759)
PC-Tail Contacts, Pin and Socket for MIL-DTL-38999
857-027
M39029/58 Type
8 Gauge Pin Contact with PC Tails
For use in special MIL-DTL-38999 Series III rear release contact retention systems using #8 power contacts.
- 857-027-08-1
- 857-027-08-2
- 857-027-08-3
857-028
M39029/56 Type
8 Gauge Socket Contact with PC Tails
For use in special MIL-DTL-38999 Series III rear release contact retention systems using #8 power contacts.
- 857-028-08-1
- 857-028-08-2
- 857-028-08-3
Solder Cup Contacts, Pin and Socket for MIL-DTL-38999
850-015
M39029/56 Type
Socket Contact with Solder Cup
for D38999 Series I, III and IV Connectors
- 850-015-22
- 850-015-2
- 850-015-16
- 850-015-12
- 850-015-10
850-016
M39029/58 Type
Pin Contact with Solder Cup
for D38999 Series I, III and IV Connectors
- 850-016-22
- 850-016-20
- 850-016-16
- 850-016-12
- 850-016-10
850-017
M39029/58 Type
Pin Contact with Extended Rear Solder Cup
for D38999 Series I, III and IV Connectors
- 850-017-22
- 850-017-20
- 850-017-16
- 850-017-12
Size #8 Power Contacts, Pin and Socket for MIL-DTL-38999
Contacts for MIL-DTL-28840 Shipboard Electrical Connectors: NAVSEA-Qualified QPL and Glenair Signature
RF, Microwave, and mmWave Contacts for SuperNine RF, Series 806 RF, Series 795 RF Connectors
Glenair manufactures an extensive range of high-frequency RF contacts for drop-in use in Glenair signature series connectors including Series 23 SuperNine RF, Series 806 RF, and Series 795 RF high-density rectangular. The use of aerospace-grade sealed and shielded multiport connectors of this type is advantageous both as a mechanism to ruggedize the I/O interface as well as for size- and space-savings. All designs are optimized for packaging in Glenair signature series connectors and fall into three contact cavity sizes: #8, #12, and #16. These are 50 and 75 Ohm contacts in BMB, SMPM, and SMPS formats. Selected contacts utilize millimeter-wave spring-loaded architecture to achieve frequencies up to 65 GHz. All are designed for direct attachment of coaxial cables and snap-in insertion to multi-cavity connectors.
Catalog: RF, Microwave, and mmWave Interconnects and Coax Cable Assemblies for Mission-Critical Aerospace Applications.
Turnkey Coaxial Interconnect Solutions: Integrated RF Interconnect Assemblies built from Aerospace-Grade Connectors, Contacts, Adapters, and Glenair BluMark RF™ Coax Cables.
- View eBook
- Download or View PDF (Single pages, print friendly)
SuperNine RF
852-133 Pin
852-314 Pin
852-134 Socket
852-315 Socket
65 GHz Size #16 SMPS
50 Ohm RF Contacts
for D38999 RF
SuperNine RF
852-157 Pin
852-158 Socket
G-LinkRF (GLink RF)
18 GHz Size #8
BMB-to-SMA Adapter
for D38999 RF
SAE-AS39029 Qualified and Commercial-Grade Shielded Coax Crimp Pin and Socket Contacts
For Use In MIL-DTL-38999, Series 23 SuperNine, Series 80 Mighty Mouse, and Series 79 Micro-Crimp Connectors
AS39029 Qualified Coaxial Size #8, Size #12, and Size #16 contacts are designed for aerospace and defense equipment subjected to high-vibration and temperature extremes with supported frequencies from DC – 3 GHz.
RF, Microwave, and Shielded Contacts
For MIL-DTL-38999, Series 23 SuperNine®, Series 80 Mighty Mouse, and Series 79 Micro-Crimp® Connectors
Series 85
SAE-AS39029 RF Coax Contacts
Size #8 AS39029 Coaxial Contacts
Size #8 AS39029 Coaxial Pin and Socket Crimp Contacts for RG-180
DC – 700 MHz
For D38999 Series I, III, and IV, SuperNine, and Mighty Mouse connectors. AS39029 qualified.
Size #12 AS39029 Coaxial Contacts
Size #12 AS39029 Coaxial Pin and Socket Crimp Contacts
for RG-174, RG-179, RG-180 and RG-316 Cable
DC – 3 GHz
For D38999 Series I, II, III, and IV, SuperNine, Series 79 Micro-Crimp, and Mighty Mouse connectors. AS39029 qualified.
Size #16 AS39029 Coaxial Contacts
Size #16 AS39029 Coaxial Pin and Socket Crimp Contacts
for RG-174, RG-179, RG-180, and RG-316 Cable
DC – 500 MHz
For D38999 Series I, II, III, and IV, SuperNine, Series 79 Micro-Crimp, and Mighty Mouse connectors. AS39029 qualified.
Glenair 50 and 75 Ohm Low-Loss Matched-Impedance Coaxial Contacts
Size #8 50 Ohm Matched-Impedance Contacts
Size #8 50 Ohm Matched-Impedance Pin and Socket Contacts
for RG-316 Single- and Double-Shield or M17/220-0001 Cable
DC – 6 GHz
For D38999, SuperNine, and Mighty Mouse connectors
Size #12 50 Ohm Matched-Impedance Contacts
Size #12 50 Ohm Matched-Impedance Contacts
for RG-178, RG-316, and RG-405 flex cable
DC – 3 GHz
For D38999 Series I, II, III, and IV, SuperNine, Series 79 Micro-Crimp and Mighty Mouse connectors
Size #8 75 Ohm Matched-Impedance Contacts
Size #8 75 Ohm Matched-Impedance Pin and Socket Contacts
for RG-179, RS170, SMPTE 292M, SMPTE 424M and other video cables
DC – 4 GHz
For D38999 Series I, III, and IV, SuperNine, and Mighty Mouse connectors
Size #12 75 Ohm Matched-Impedance Contacts
Size #12 75 Ohm Matched-Impedance Contacts
for RS170, SMPTE 292M and other video cables
DC – 3 GHz
For D38999 Series I, II, III, and IV, SuperNine, Series 79 Micro-Crimp and Mighty Mouse connectors
M39029 Type Twinax and Quadrax Contacts for Data Bus and 100BASE-T Ethernet Applications
Size #8 77 Ohm Concentric Twinax Contacts
Size #8 77 Ohm Concentric Twinax Contacts
for 77 Ohm M17/176-00002 databus cable
10 MHz
IAW M39029/113 and /114. For D38999, SuperNine and Mighty Mouse connectors.
Size #8 100 Ohm Concentric Twinax Contacts
Size #8 100 Ohm Concentric Twinax Contacts
for 24 AWG 100 ohm TE/Raychem 0024A0024 and Gore GSC-03-81416-00 cables
1 MHz
For D38999 Series I, III, and IV, SuperNine, and Mighty Mouse connectors.
Size #12 77 Ohm Concentric Twinax Contacts
Size #12 77 Ohm Concentric Twinax Contacts
for 77 ohm shielded twisted pair data cable
10 MHz
IAW JN1104, DSCC 02003 and DSCC 02004. For D38999 Series I, III, and IV connectors.
Size #8 Differential Twinax Contacts
Size #8 Differential Twinax Contacts
for 68, 75, 77 and 100 ohm and M17/176-00002 databus cable
DC – 3 GHz
For Mighty Mouse and Glenair 233-217 D38999 Series III SuperNine connectors with keyed #8 cavities.
Size #8 100 Ohm and 150 Ohm Quadrax Contacts
Size #8 100 Ohm and 150 Ohm Quadrax Contacts
for Aerospace-Grade Quad Cable
100 ohm Ethernet / 150 ohm Fibre Channel
For Mighty Mouse and Glenair 233-217 D38999 Series III type SuperNine connectors with keyed #8 inserts.
8589-0001
Quadrax Cable Assemblies
Aerospace-grade cable. 100% tested. Available with pin/pin, pin/socket, socket/socket, pin/RJ45 and socket/RJ45 configurations.
For Glenair Series 23, 28, 792, 806, and ARINC 600 connectors.
Thermocouple Contacts for MIL-DTL-38999, MIL-DTL-24308, and Series 28 HiPer-D Connectors
850-329
Thermocouple Socket Contact with Crown Ring
for D38999 and SuperNine Connectors
500 mating cycles
IAW AS39029/121
859-172
Thermocouple Wire Barrel Reducer Bushing
To reduce the barrel size of M39029/87, M39029/88 and M39029/89 thermocouple contacts to accommodate smaller wire size.
850-023
M39029/87 Type
Thermocouple Pin Contact
for D38999 Series I, II, III and IV and M24308 Connectors
850-111
M39029/63 Type
Thermocouple Socket Contact, Size #20
for MIL-DTL-24308 and Series 28 HiPer-D Connectors
850-112
M39029/64 Type
Thermocouple Pin Contact, Size #20
for MIL-DTL-24308 and Series 28 HiPer-D Connectors
857-451
Thermocouple Jumper
857-451-01 Thermocouple Cable, Twisted Pair, P/N: 968-039
857-451-02 Extension Thermocouple Cable, Twisted Pair, P/N: 968-026
MIL-DTL-38999 Series III
8577-0001
Jumper Wire M22759 with M39029/56 and 58 Contacts
8577-0001M MIL-SPEC M22759
8577-0001G Made IAW M22759 (GS22759)
Pneumatic Contacts for D38999 Series I, II, III, and IV and Mighty Mouse Connectors

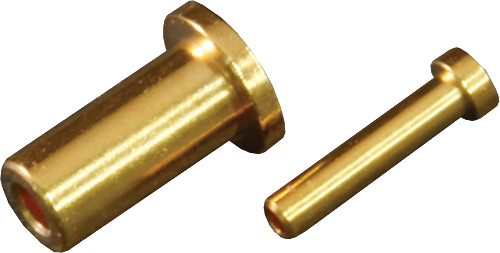

Bushings, Adapters, and Dummy Contact Sealing Plugs

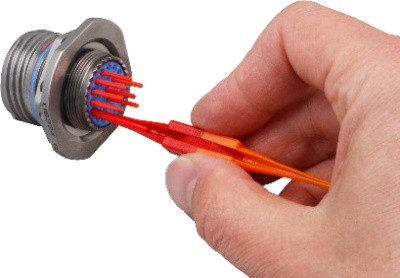

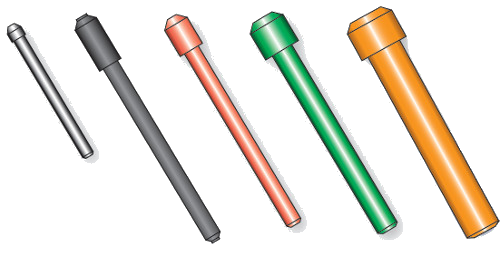

Dummy Contact Sealing Plugs (DCSP)
For D38999, SuperNine, Mighty Mouse, Series 806, and Series 79 Connectors
Weight/Cost-Saving
For reliable sealing of unused contact cavities
kV Seal™ High-Voltage Contact Assemblies
13.5 kVDC–22 kVDC High-Voltage, Low Amperage Insertable / Removable Contact Assemblies for High-Voltage DC Circuit Applications
Glenair kV Seal™ contact assemblies are used in applications such as traveling-wave tube RF amplifier devices, directional radar, missile seekers, fire control systems, and other electronic devices that utilize extremely high-voltage circuits in their operation. High-voltage DC is used for the excitation and activation of certain electronic elements within these systems.
- Seals interface air gap
- Air-excluding interface and overmolded wire strain relief increase breakdown strength at higher altitudes
- Obstructs interface creep path, increasing breakdown strength against surface tracking
- Modular design integrates into multiple connector packages
- Scales for various operating voltages
kV Seal pre-wired single- or double-ended assemblies are designed for drop-in use in Glenair signature SuperNine connectors (D38999 Series I, II, III, and IV type), Mighty Mouse, and Series 79 Micro Crimp rectangular connectors. Size #12 kV Seal contacts may be paired with #22 or #24 AWG wire for applications requiring 13.5 kVDC operating voltage. kV Seal Plus designs provide 15 kVDC voltage performance. Size #8 kV Seal high-voltage contacts utilize #16 AWG wire for 22 kVDC operating voltage. These insertable / removable assemblies are compatible with mil-standard 1560 contact arrangements incorporating non-keyed size #12 and size #8 contacts.
Reference
kV Seal™ High-Voltage Contact Assemblies
13.5 kVDC–22 kVDC High-Voltage, Low Amperage Insertable / Removable Contact Assemblies for High-Voltage DC Circuit Applications
GHV-001
kV Seal Size #12 Contacts
13.5 kV contacts for SuperNine and D38999 Series I, III, and IV connectors
GHV-002
kV Seal Plus Size #12 Contacts
15 kV contacts for SuperNine and D38999 Series I, III, and IV connectors
GHV-003
kV Seal Size #12 Contacts
13.5 kV contacts for Mighty Mouse, Series 79, and D38999 Series II connectors
GHV-004
kV Seal Size #8 Contacts
22 kV contacts for Size #8 cavities in SuperNine, Mighty Mouse, and Series 79 rectangular connectors
Series-Specific Contacts for Glenair Signature Circular Connectors

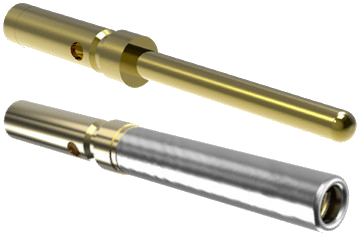

Series 806 Mil-Aero D38999 Micro Miniature
Signal, Power, High-Speed, RF Coax, Thermocouple and more
SuperNine D38999 Series III
QPL and extended-durability crimp contacts: signal, power, coax, and more

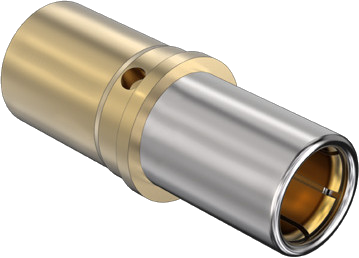

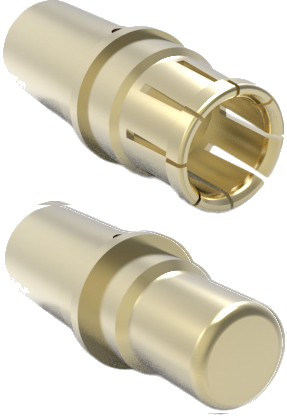

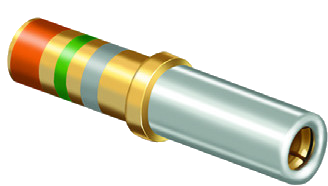

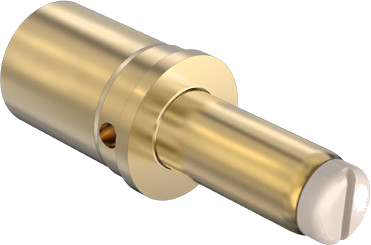

Contacts for PowerPlay High-Power Connectors: SuperNine Series I and III PowerPlay, Series 806 Mil-Aero PowerPlay, Series 971 Micro-Crimp PowerPlay

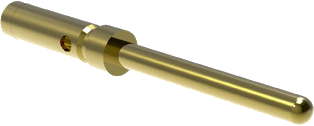

850-202-20 Standard
850-346-20 Extended-Length
#20 Pin Contacts
for Micro-Crimp PowerPlay and SuperNine I and III PowerPlay
850-347-20
AS39029/56 Type Crimp Socket Contact
for Micro-Crimp PowerPlay and SuperNine I and III PowerPlay
Contacts for Series 970 PowerTrip High-Performance Power Connectors
Contacts for Series 790, 791, and 793 Micro-Crimp Aerospace Rectangular Connectors
High-Speed, Coax, Twinax, Quadrax, and Octaxial Contacts for Series 792 Micro-Crimp Connectors

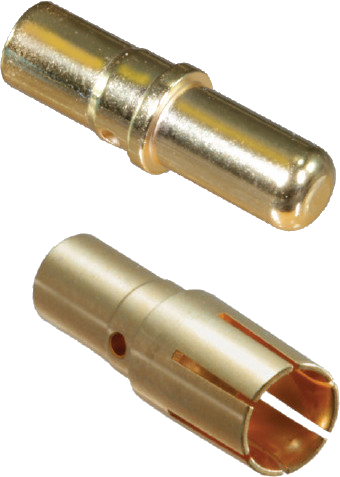

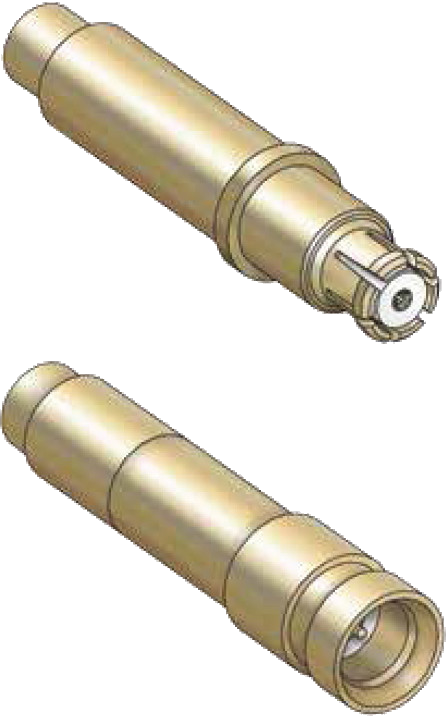

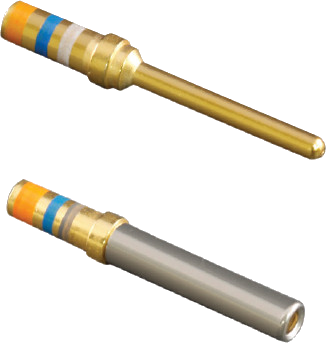

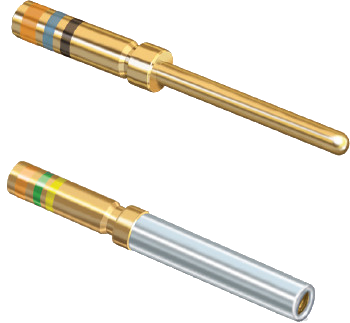

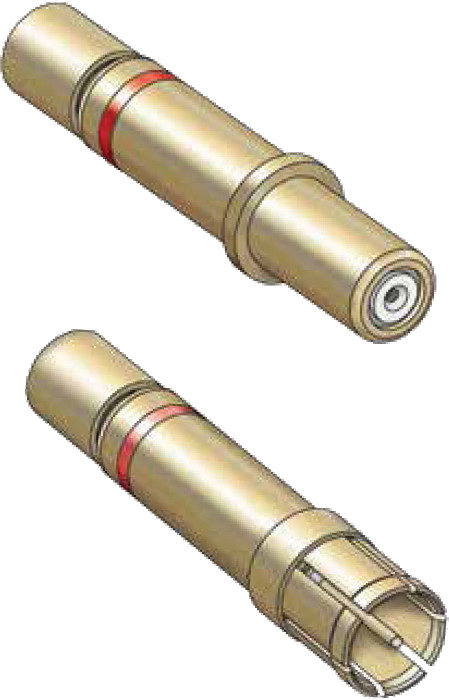

Contacts for HiPer-D M24308 Connectors: Signal, Power, Coax
Optoelectronic Transmitter and Receiver Contacts
Size #8 Cavity Insert Optoelectronic Transmitter and Receiver Contacts
1.25 mm ARINC 801, 2.5 mm ELIO, and 1.25 mm LuxCis Integrated Solutions
for Size 8 Cavity Inserts
