El Ochito® White
El Ochito® White provides optimization of Ethernet protocols with the use of cross shields to minimize crosstalk. Ideal for Ethernet up to 40GBase-T applications in hostile environments with temperature extremes, high vibration, electromagnetic interference as well as moisture exposure. Compatible with SAE AS6070 flight-grade Ethernet cable. Accepts 24 AWG to 26 AWG. Available with secure threaded coupling or push-pull QDC mating.
- Quick Disconnect for up to 40Gb Ethernet
- Threaded Coupling for up to 40Gb Ethernet
- Flight-Grade 100 Ohm Ethernet Cables
Quick Disconnect for up to 40Gb Ethernet
882-001
Cable Plug. Integral backshell and cable grommet. Supplied as unassembled kit for termination to Cat 6A and Cat 8 Ethernet cable. Mates to 882-002, -005, -008, -038.
882-002
Cable Receptacle. Integral backshell and cable grommet. Supplied as unassembled kit for termination to Cat 6A and Cat 8 Ethernet cable. Mates to 882-001, -017, -032, -035.
882-035
Panel Mount Plug. Integral backshell and cable grommet. Supplied as unassembled kit for termination to Cat 6A and Cat 8 Ethernet cable. Mates to 882-002, -005, -008, -038.
882-038
Panel Mount Receptacle. Integral backshell and cable grommet. Supplied as unassembled kit for termination to Cat 6A and Cat 8 Ethernet cable. Mates to 882-001, -017, -032, -035.
882-017
PCB Plug. Rear panel mount, jam-nut plug with O-ring seals and epoxy potting for watertight sealing. Mates with 882-002, -005, -008, and -038.
882-005
Straight PCB Receptacle. Rear panel mount, jam-nut receptacle with O-ring seals and epoxy potting for watertight sealing. Mates with 882-001, -017, -032, and -035.
882-032
90° PCB Plug. Rear panel mount, jam-nut plug with O-ring seals and epoxy potting for watertight sealing. Up to 10 GbE. Mates with 882-002, -005, -008, and -038.
882-008
90° PCB Receptacle. Rear panel mount, jam-nut receptacle with O-ring seals and epoxy potting for watertight sealing. Up to 10 GbE. Mates with 882-001, -017, -032, -035.
8571-0007
Cordset, Single-ended. Pre-wired with aerospace-grade Cat 6A Ethernet cable. Cable has SuperFly connector on one end, opposite end is unterminated.
8571-0008
Cordset, Double-ended. Pre-wired with aerospace-grade Cat 6A Ethernet cable. Cable has SuperFly plug on one end and receptacle on the other end.
8571-0009
RJ45 Patchcord, Ground. Pre-wired with commercial-grade Cat 6A Ethernet cable. Cable has SuperFly plug on one end and RJ45 plug on opposite end.
8571-0010
RJ45 Patchcord, Flight. Pre-wired with aerospace-grade Cat 6A Ethernet cable. Cable has SuperFly connector on one end and plug or receptacle on the other end.
8571-0033
Cordset, Single-ended. Pre-wired with aerospace-grade Cat 8 Ethernet cable. Cable has SuperFly connector on one end, other end is unterminated.
8571-0034
Cordset, Double-ended. Pre-wired with aerospace-grade Cat 8 Ethernet cable. Cable has SuperFly plug on one end and receptacle on opposite end.
8571-0035
RJ45 Patchcord, Flight. Pre-wired with aerospace-grade Cat 8 Ethernet cable. Cable has SuperFly connector on one end and RJ45 plug on the other end.
Threaded Coupling for up to 40Gb Ethernet

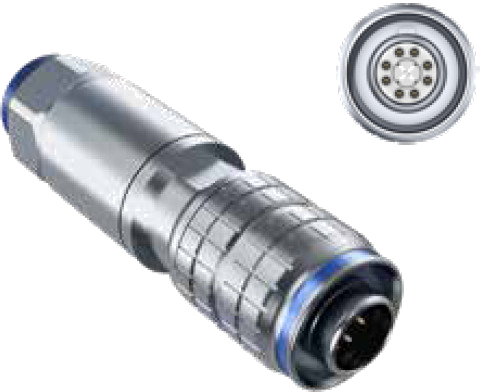

882-003
Cable Plug. Integral backshell and cable grommet. Supplied as unassembled kit for termination to Cat 6A and Cat 8 Ethernet cable. Mates to 882-004, -006, -007, and -041.
882-006
Cable Receptacle. Integral backshell and cable grommet. Supplied as unassembled kit for termination to Cat 6A and Cat 8 Ethernet cable. Mates with 882-003.

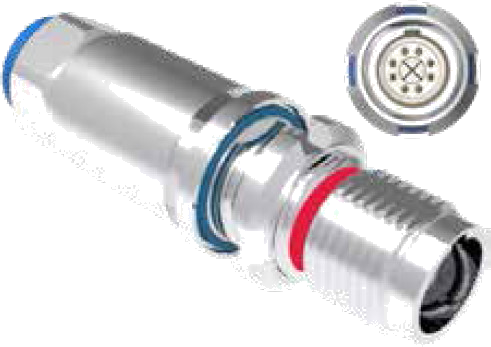

882-041
Panel Mount Receptacle. Integral backshell and cable grommet. Supplied as unassembled kit for termination to Cat 6A and 8 Ethernet cable. Mates with 882-003.

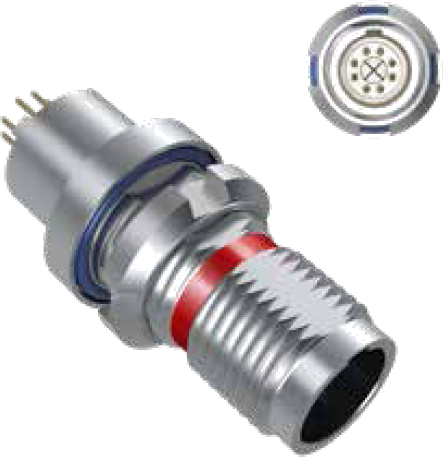

882-004
PCB Receptacle. Rear panel mount, jam-nut receptacle with O-ring seals and epoxy potting for watertight sealing. Mates with 882-003.
882-007
90° PCB Receptacle. Rear panel mount, jam-nut receptacle with O-ring seals and epoxy potting for watertight sealing. Mates with 882-003. 10GE only.
8571-0012
Cordset, Single-ended. Pre-wired with aerospace-grade Cat 6A Ethernet cable. Cable has SuperFly connector on one end, opposite end is unterminated.
8571-0013
Cordset, Double-ended. Pre-wired with aerospace-grade Cat 6A Ethernet cable. Cable has SuperFly plug on one end and receptacle on opposite end.

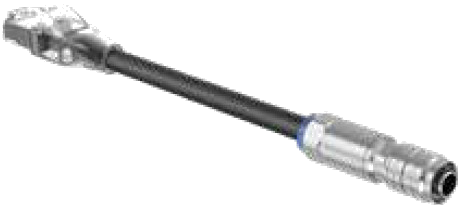

8571-0015
RJ45 Patchcord, Ground. Pre-wired with commercial-grade Cat 6A Ethernet cable. Cable has SuperFly connector on one end and RJ45 plug on the other end.

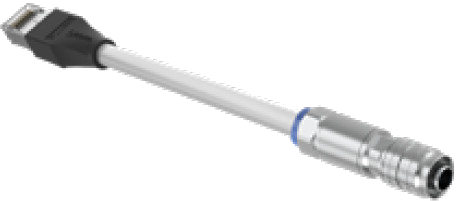

8571-0016
RJ45 Patchcord. Pre-wired with aerospace-grade Cat 6A Ethernet cable. Cable has SuperFly connector on one end and RJ45 plug on opposite end.

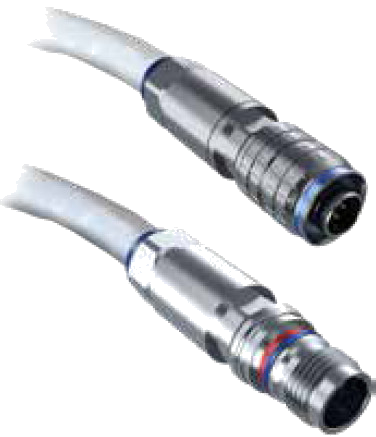

8571-0036
Cordset, Single-ended. Pre-wired with aerospace-grade Cat 8 Ethernet shielded cable. Cable has SuperFly connector on one end, opposite end is unterminated.

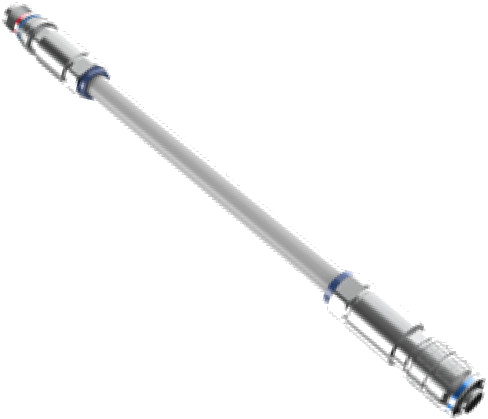

8571-0037
Cordset, Double-ended. Pre-wired with aerospace-grade Cat 8 Ethernet shielded cable. Cable has SuperFly plug on one end and receptacle on the other end.
8571-0038
RJ45 Patchcord. Pre-wired with aerospace-grade Cat 8 Ethernet cable. Cable has SuperFly connector on one end and RJ45 plug on opposite end.
Flight-Grade 100 Ohm Ethernet Cables
963-033-24
963-033-26
S/FTP Cat 6A Cable. 963-033-24: 24 AWG, S/FTP construction, foil shielded data pairs. AS6070/5 and /6 approved. Meets TIA-568.C Cat 6A up to 80 m. 963-033-26: 26 AWG, meets TIA-568B Cat 6A up to 65 m.
963-037-24
963-003-24
S/UTP Cat 6A Cable. 963-037-24: 24 AWG, S/UTP with fluoropolymer spline and PTFE tape jacket, meets FAA requirements up to 246 ft. 963-003-24: 24 AWG, S/UTP with fluoropolymer spline, RoHS, meets TIA-568B Cat 6A up to 240 ft.
963-003-26
963-132-24
963-132-26
963-003-26: Cat 6A S/UTP Cable, 26 AWG, meets TIA-568B Cat 6A up to 188 ft. 963-132-24: S/FTP Cat 8 Cable, 24 AWG, meets TIA-568-2.D Cat 8 up to 22 m. 963-132-26: S/FTP Cat 8 Cable, 26 AWG, meets TIA-568-2.D Cat 8 up to 18 m.
963-132-26
963-135-26
26 AWG S/FTP Cat 8 Cable. 963-132-26: Foil wrapped data pairs, unique cable jacket, meets TIA-568-2.D Cat 8 up to 18 m, SAE AS6070/5 and /6. 963-135-26: Individual foil shield per pair, FEP jacket, meets TIA-568-2.D Cat 8 up to 20 m.
