PowerTrip® Connectors

Quick-Disconnect, High-Current, Harsh-Environment Power Connectors for Rugged Mil-Aero Applications

Protect Circuits with Series 970 PowerTrip® Connectors

Series 970

Series 970 connectors fill the need for a military-grade harsh environment power connector with improved mechanical, environmental and electrical performance. PowerTrip® delivers reduced size and weight compared to lower-density 5015 type power connectors. Featuring triple-start mating threads, crimp rear-release contacts, IP68 environmental sealing, and improved EMI protection, PowerTrip® is ideal for power distribution units, hybrid electric drives, motors, and other high current applications.

• Fast, easy mating with triple-start ACME thread: 360° turn for full mating
• Reduced size and weight compared to conventional industrial and/or aerospace solutions
• LouverBand sockets for improved current ratings
• Ratcheting coupling nut for secure mating and high vibration resistance
• Operating temperature -65° C to +200° C
• IP68+ environmental sealing, 6 ft. for 48 hrs.

Powerline Filters

Powerline filters suited for filtering DC and AC mains services are typically designed to incorporate both common-mode and differential-mode filters (line-to-line). Common mode chokes capable of screening both incoming and outgoing noise and transients are ideally suited for incorporation in Series 970 PowerTrip® filter connectors. All multiple-line filters employ modern filter elements incorporating compensating inductors or coupled chokes. PowerTrip powerline filters are typically supplied as made-to-order (bespoke) solutions. Please contact the factory for application engineering assistance.

• Overview: Powerline Filters with Common Mode Chokes and Line-To-Line Filtering

Introduction

• Overview: Mil-Aero Grade Louverband Contact-Equipped Power Connectors
• Table of Contents
• Features and Benefits
• Connector Selection Guide

General Information and Technical Reference

• Contact Design, Current Rating
• Materials and Finishes
• Product Specification
• PowerTrip Shell Material and Finish Options
• PowerTrip® Connectors for Space Flight

Contact Arrangements

• Insert Arrangements, Current Rating, Wire Diagram Sealing Range

Product Datasheet

• PowerTrip® Connectors for Extreme Environments / Series 970

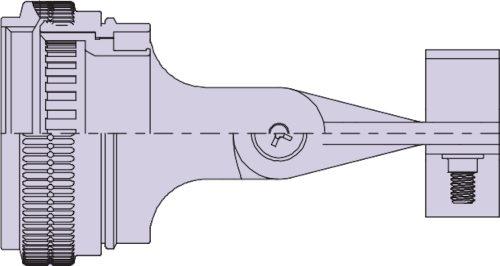

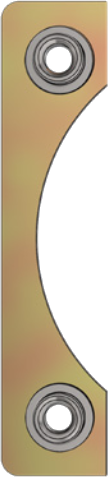

• Selection Guide: Backshells and Accessories
