PowerPlay™ High-Power Connectors and Cables

A Complete Ecosystem of Lightweight Vibration- and Shock-Resistant Connectors, Contacts, and Cables

Series 973

PowerPlay is a high-power, single-pole and multipole connector series — with four different circular and rectangular packaging options: SuperNine Series III triple-start, SuperNine Series I bayonet, Series 806 micro-miniature, and Micro-Crimp precision rectangular. The connector series combines Glenair signature raised tower insert architecture, Crown Ring contacts, and TurboFlex cable compatibility into the interconnect industry's most innovative power solution. PowerPlay's high-conductivity Crown Ring contact and dielectric insert technology delivers 5,000 VAC dielectric withstanding voltage. Raised safe-touch socket tower and available safe-touch pin meets industry protection requirements for high power distribution applications.

• 5000 VAC dielectric withstanding voltage
• High current, low-resistance, and superior vibration performance
• Safe-touch finger-proofing
• Integrated band platform cable shield termination
• Compatible with TurboFlex high-flexibility cable
• Support for bus-bar and other wire terminations
• Multi-pin arrangements for size 8 and 4 AWG contacts. Single-pole arrangements for 2, 1/0, 2/0, and 4/0 contacts. Options for 20 AWG interlock contacts on all sizes

Home > Glenair Signature Series > PowerPlay™

---

Reference

• Overview: PowerPlay™ High-Power Connectors and Cables
• PowerPlay™: Key Connector and Contact Design Features, Plug, and Receptacle Cutaway Views
• Table of Contents
• Crown Ring Contact Resistance and Temperature Rise Performance
• High Current-Carrying Capacity Contacts and Connectors
• Performance Specifications and Test Summary
• Test Report Summary: Electrical, Mechanical, and Environmental Performance Testing

On this page...

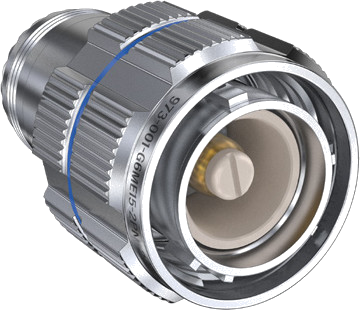

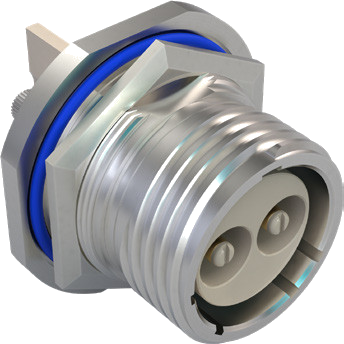

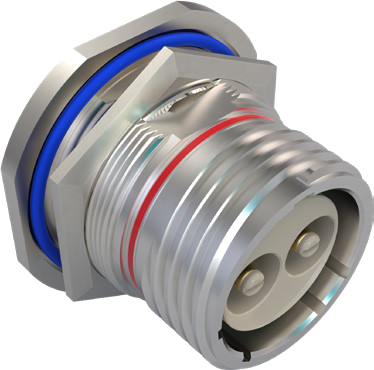

• SuperNine Series I and III PowerPlay™
• Series 806 Mil-Aero High-Density PowerPlay
• Series 971 Micro-Crimp PowerPlay Rectangular Connectors
• TurboFlex High-Current, High-Power Cables
• Series 850 High-Power Crown Ring Contacts

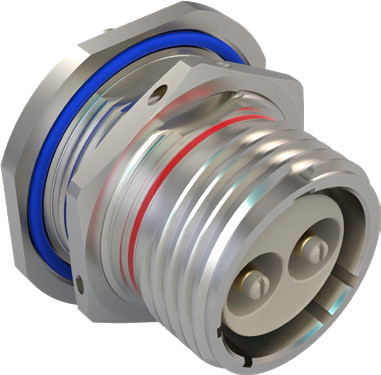

SuperNine Series I and III PowerPlay™

• SuperNine Series I & III Raised Tower Architecture
• High-Temperature Crown Ring Contacts
• Compatible TurboFlex Cabling

Reference: SuperNine Series I and III PowerPlay

• Overview: SuperNine Series I and III PowerPlay™
• Detailed Contact Arrangements
• Connector Polarizations

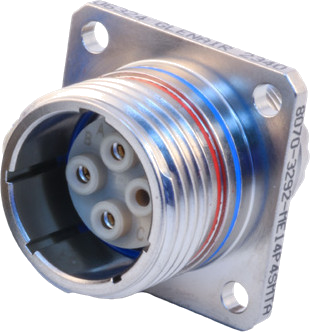

Series 806 Mil-Aero High-Density PowerPlay

Save Size and Weight with Series 806 Versus D38999

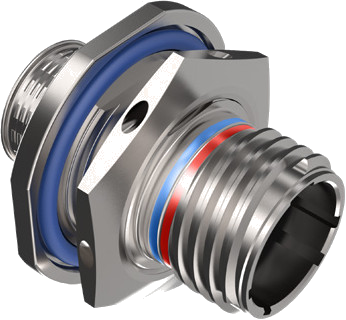

Series 806 Mil-Aero is the Glenair micro miniature circular series offering significant size and weight savings while meeting key performance benchmarks for a broad range of applications such as commercial and military aerospace, industrial robotics, and transportation systems. Designed for general use in harsh vibration, shock, and environmental settings—as well as high-altitude, unpressurized aircraft zones with aggressive voltage ratings and altitude immersion standards—the Series 806 Mil-Aero features numerous mechanical design innovations including durable mechanical insert retention, radial seals and triple-ripple grommet seals. Its reduced thread pitch and re-engineered ratchet prevent decoupling problems, particularly in small shell sizes, solving one of the major problems of shell size 9 and 11 MIL-DTL-38999 Series III connectors. PowerPlay versions of the Series 806 leverage all of these performance and design advantages, combined with support for PowerPlay contacts, safe-touch inserts, and TurboFlex cable.

• Series 806 Mil-Aero Raised Tower Architecture
• High-Temperature Crown Ring Contacts
• Compatible TurboFlex Cabling

Reference

• Overview: SuperNine Series I and III PowerPlay™
• Performance Specifications and Test Summary

• Series 806 PowerPlay Shell Insert / Contact Arrangements

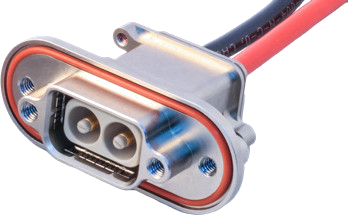

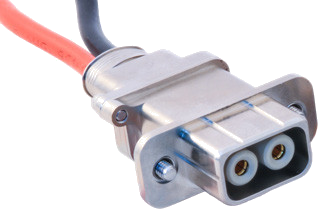

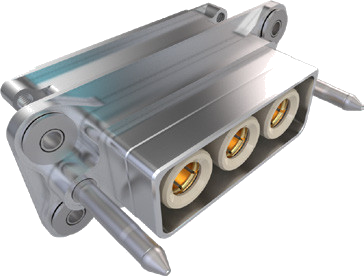

Series 971 Micro-Crimp PowerPlay Rectangular Connectors

High-Power Rectangular Connector for Propulsion Applications

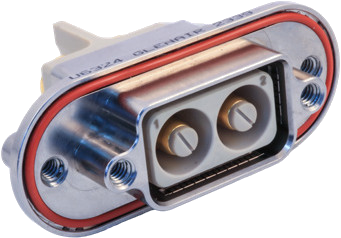

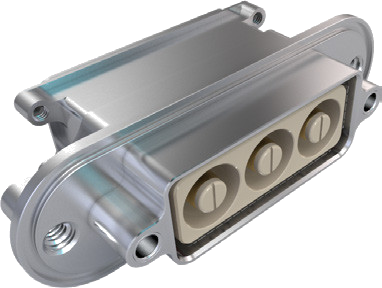

The Series 971 Micro-Crimp PowerPlay is a signature Glenair rectangular power connector, purpose-designed for electrical and hybrid electrical aircraft propulsion applications. The series is equipped with a unique raised tower architecture for improved creep path electrical performance. Series 971 is equipped with the Glenair high-temperature and high-shock resistant Crown Ring power contact and is fully compatible with ultra high flexibility TurboFlex cable. Supplied in nine high-density power insert arrangements with #8, #4, #2, and #1/0 contacts. Interlock last-mate / first-break arrangements with conventional #20 contacts are also supported. Raised socket towers and safe-touch pin contacts ensure operator safety. Connector shells and bodies are precision-machined from aluminum or stainless steel material and are fully shrouded for electromagnetic compatibility. Full environmental sealing ensures life-of-system reliability in even the harshest high-altitude environments.

• Series 971 Rectangular with Raised Tower Architecture
• High-Temperature Crown Ring Contacts
• Compatible TurboFlex Cabling

Reference

• Overview: TurboFlex and Series 971 Micro-Crimp PowerPlay Connector, Contact, and Cable Ecosystem
• Micro-Crimp PowerPlay Shell Insert / Contact Arrangements

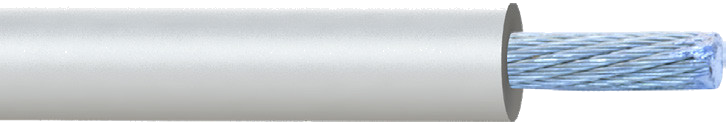

TurboFlex High-Current, High-Power Cables

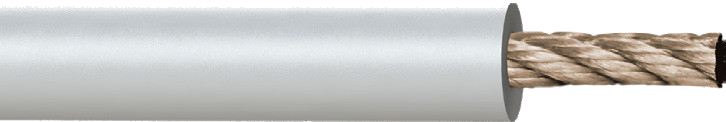

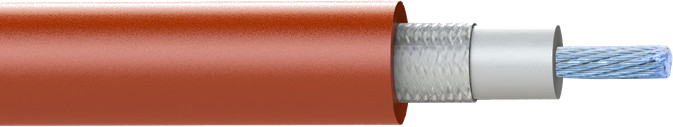

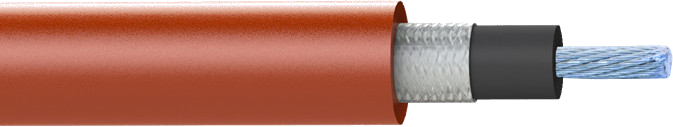

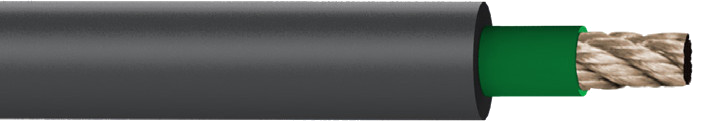

TurboFlex is an ultra flexible and rugged power cable solution ideal for high-power electrical distribution and propulsion applications such as battery-plant-to-inverter-to-electric-motor cables for eVTOL aircraft. Constructed from rope-lay configuration copper or aluminum wire and jacketed with Glenair signature Duralectric insulation, TurboFlex cables are optimized for use in an ecosystem of Glenair signature contact and connector technologies. Turnkey connectorized or lugged cable assemblies — fully tested and ready for immediate use — provide reliable high-temperature tolerant performance up to 4500 VAC.

Reference

• Overview: TurboFlex — Flexible and Rugged Power Cable Solution
• TurboFlex and PowerPlay Connector, Contact, and Cable Ecosystem

Series 850 High-Power Crown Ring Contacts

For Reduced Contact Resistance, Superior Conductivity, and Higher Temperature-Tolerance than Conventional AS39029 Contacts and Specialized High-Power Contacts from Other Manufacturers

Reference

• Overview: Crown Ring Contact / Raised Tower Insulator Architecture
